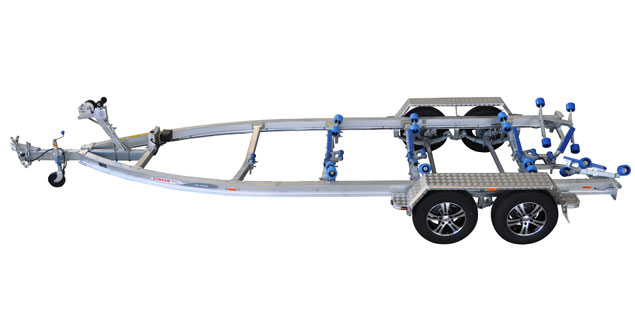

This tandem, multi-roller aluminium trailer was built specifically for our Stacer Plate range and is perfect for boats from 6.9m to 7.3m.

Stacer’s range of custom made trailers provide the safest and strongest companion for your Stacer boat to date. The range includes both galvanised steel and aluminium frames made from rolled ‘I’ beam for maximum strength.

Each trailer is specially fitted to your boat before it leaves our factory meaning they are perfectly matched for each other. Our trailers have been extensively tested with a simulated 100,000km around the Army ‘Torture’ test track to ensure they stand the test of time and the harsh conditions of Australian roads.

Love your boat but desperately need a new trailer? No problem, you can purchase a new Stacer trailer to go under your existing boat as well!

Specifications

Aggregate Trailer Mass 2750 Kg

Brakes Yes

Gross Trailer Mass 560 Kg

Length Overall 7.43 M

Springs 6.00

Tare Weight 2,500.00 Kg

Tyre 185

Wheel 14 "

Width Between Guards 1.80 M

Width Overall 2.27 M

Features

Aluminium Cross Members (4)

Aluminium Cross Members (5)

Axle Galvanised 50mm Hydraulic Braked

Brakes - Hydraulic Brake Away System

Drawbar 75mmx125mm Hot Dipped Galvanised

Easy Loader Drive On Cradle

Galvanised 6 Leaf Suspension Springs

Jockey Wheel - Swing Up

Lights: Submersible LED Forward Facing Lights (2)

Lights: Submersible LED Tail Lights

Lights: Submersible LED Wide Clearance Lights (2)

Motor Support Bracket

Rolled Aluminium Trailer Frame

Tie Down Points Front & Rear

Wheels: 14" Alloy

Winch: 5:1 Ratio 500kg & Webbing Strap

Options

7 Pin Flat Plug

7 Pin Plug Round LARGE

7 Pin Round SMALL

Spare Wheel & Carrier 14" Alloy

Trailer Walkway
