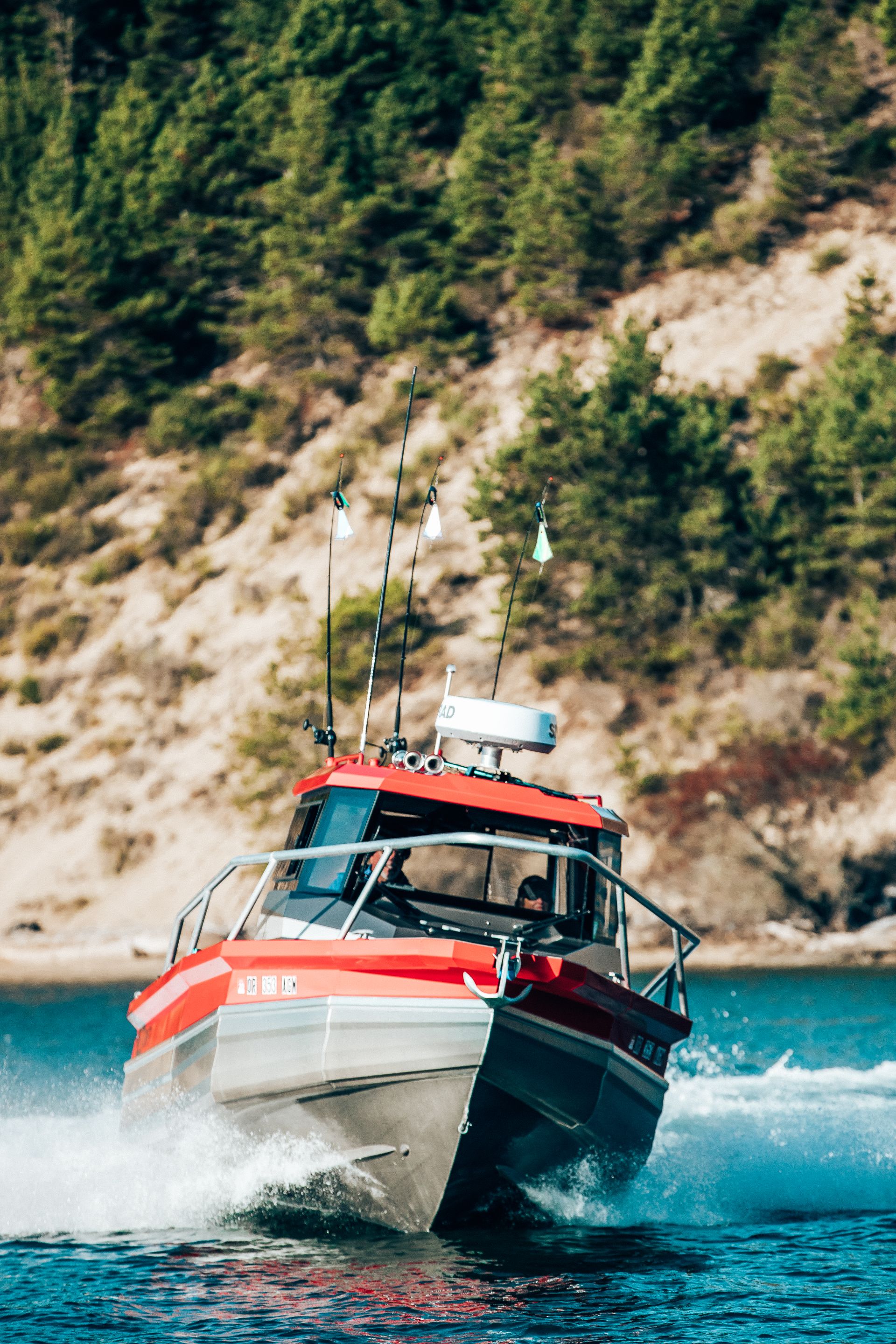

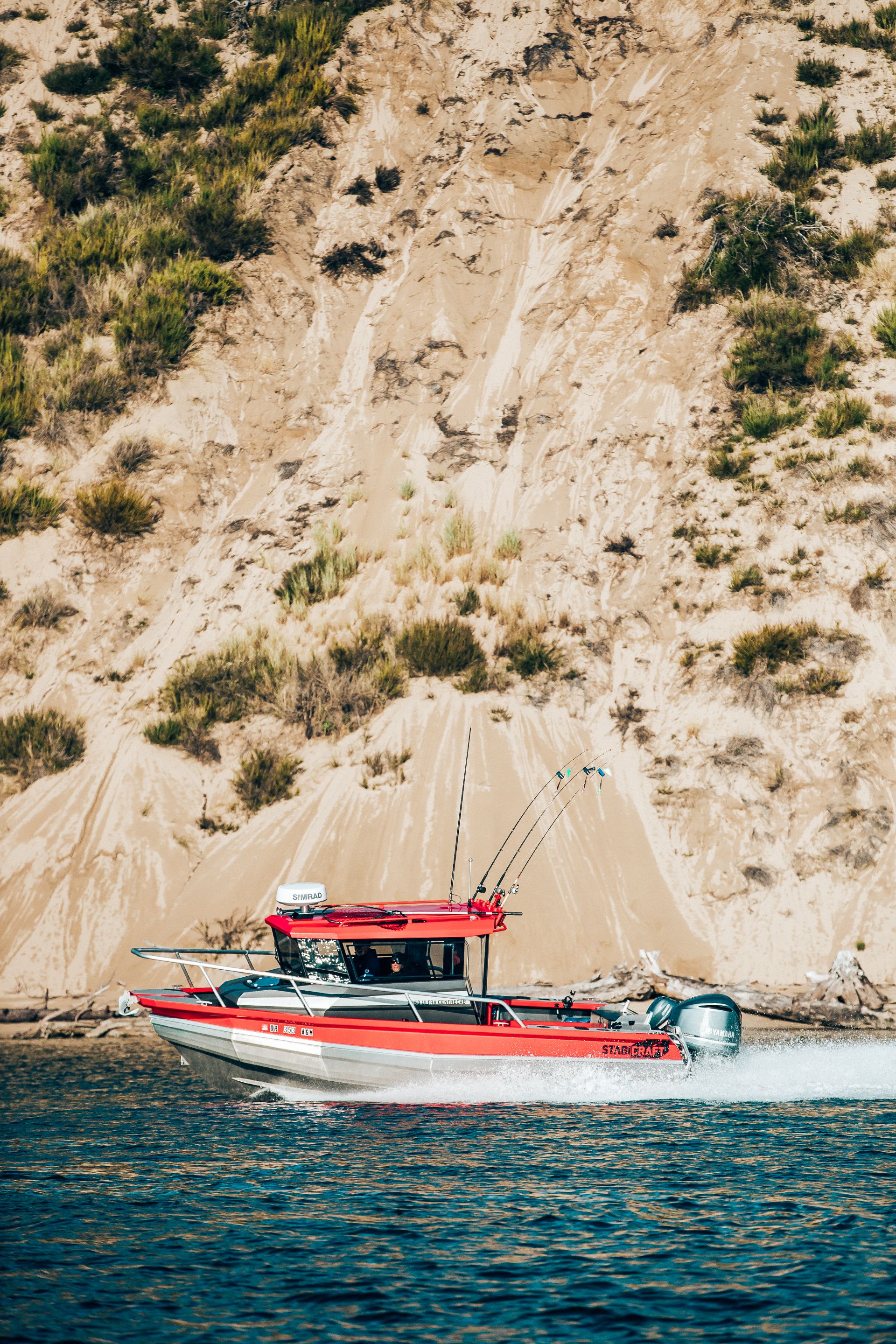

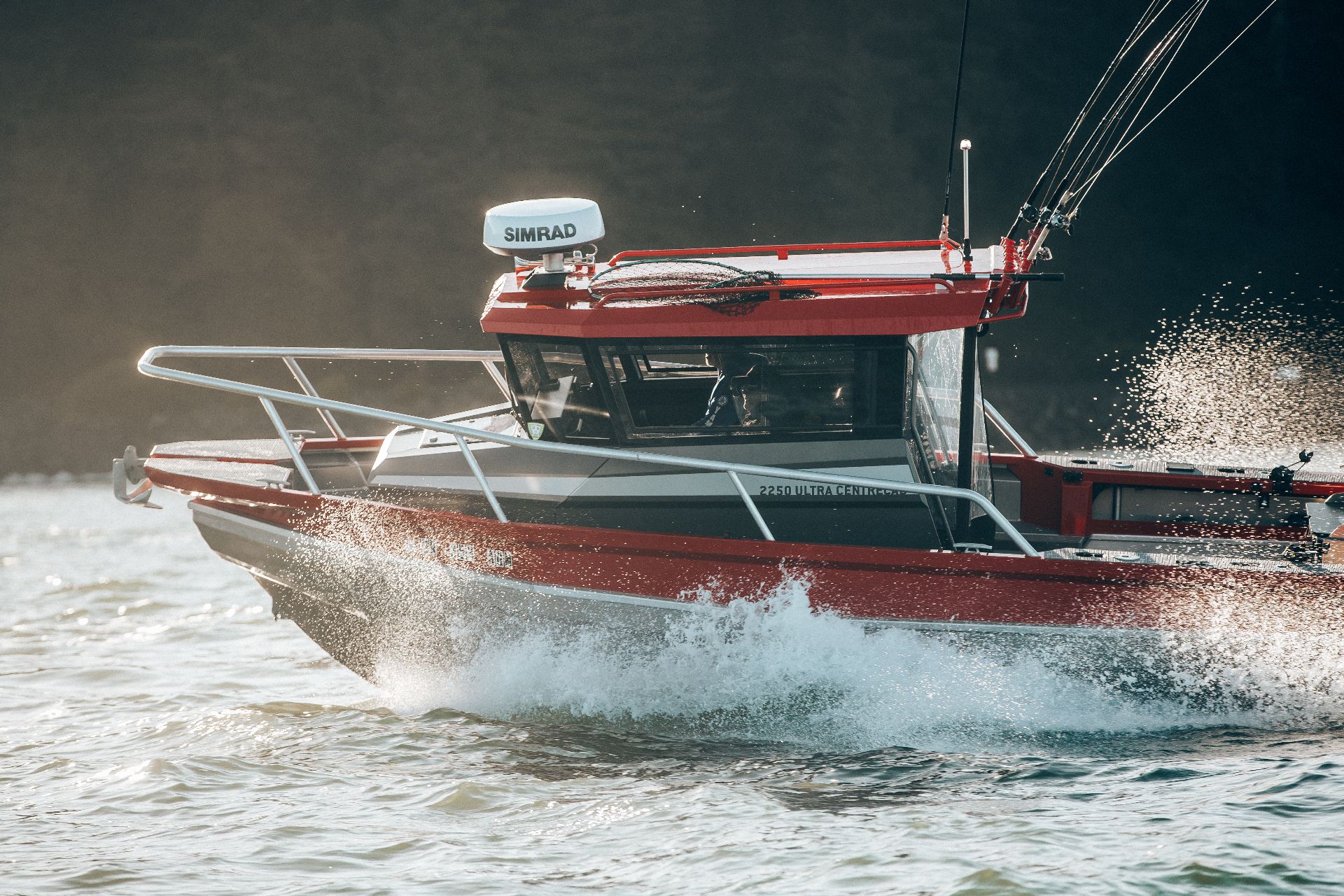

The 2250 Ultra Centrecab is offered in four packages with differing standard and optional features. With a base 2250 hull that can hold its own in big water and adventure action, the four package configurations give you the ability to choose your perfect rig.

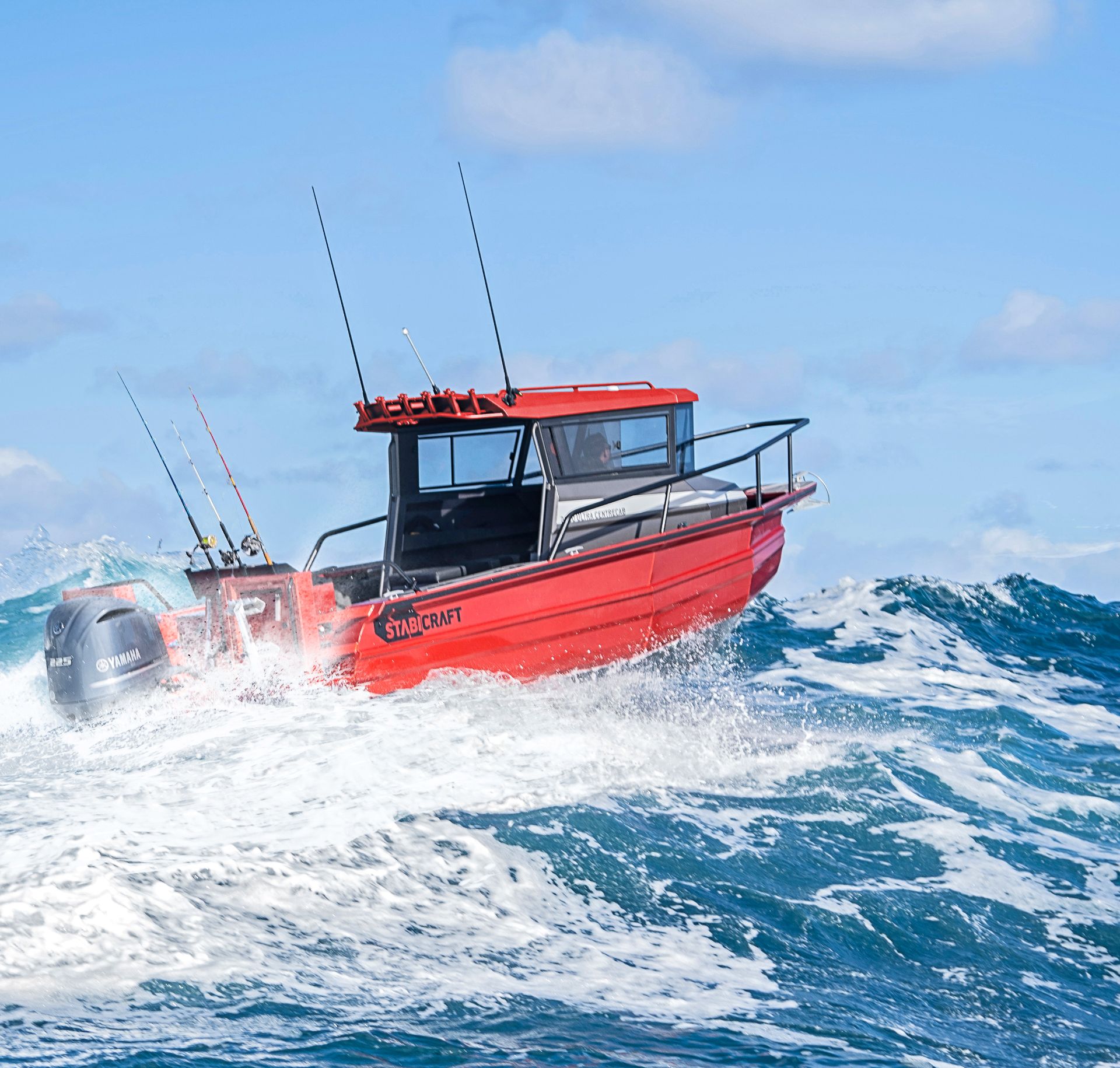

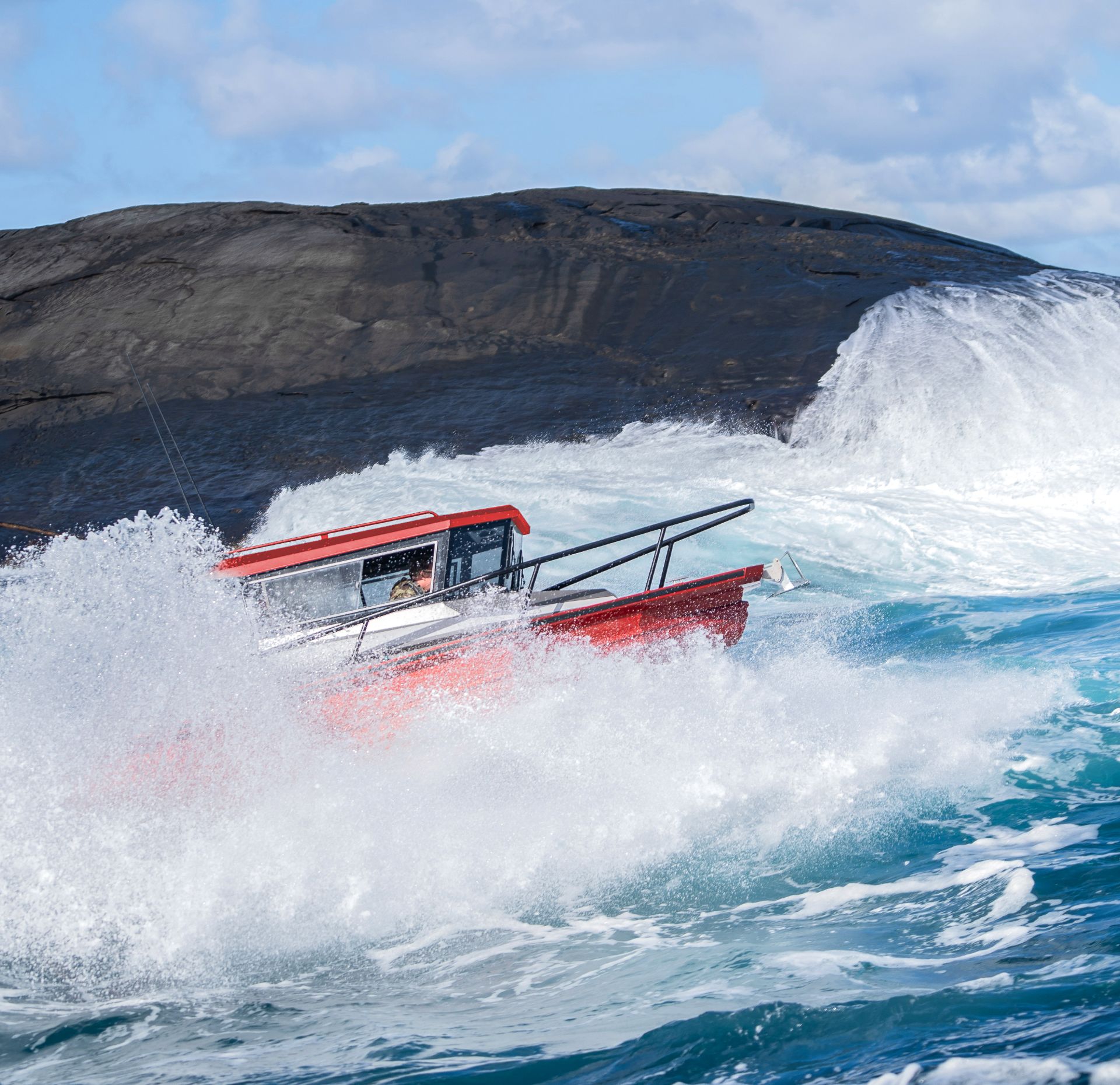

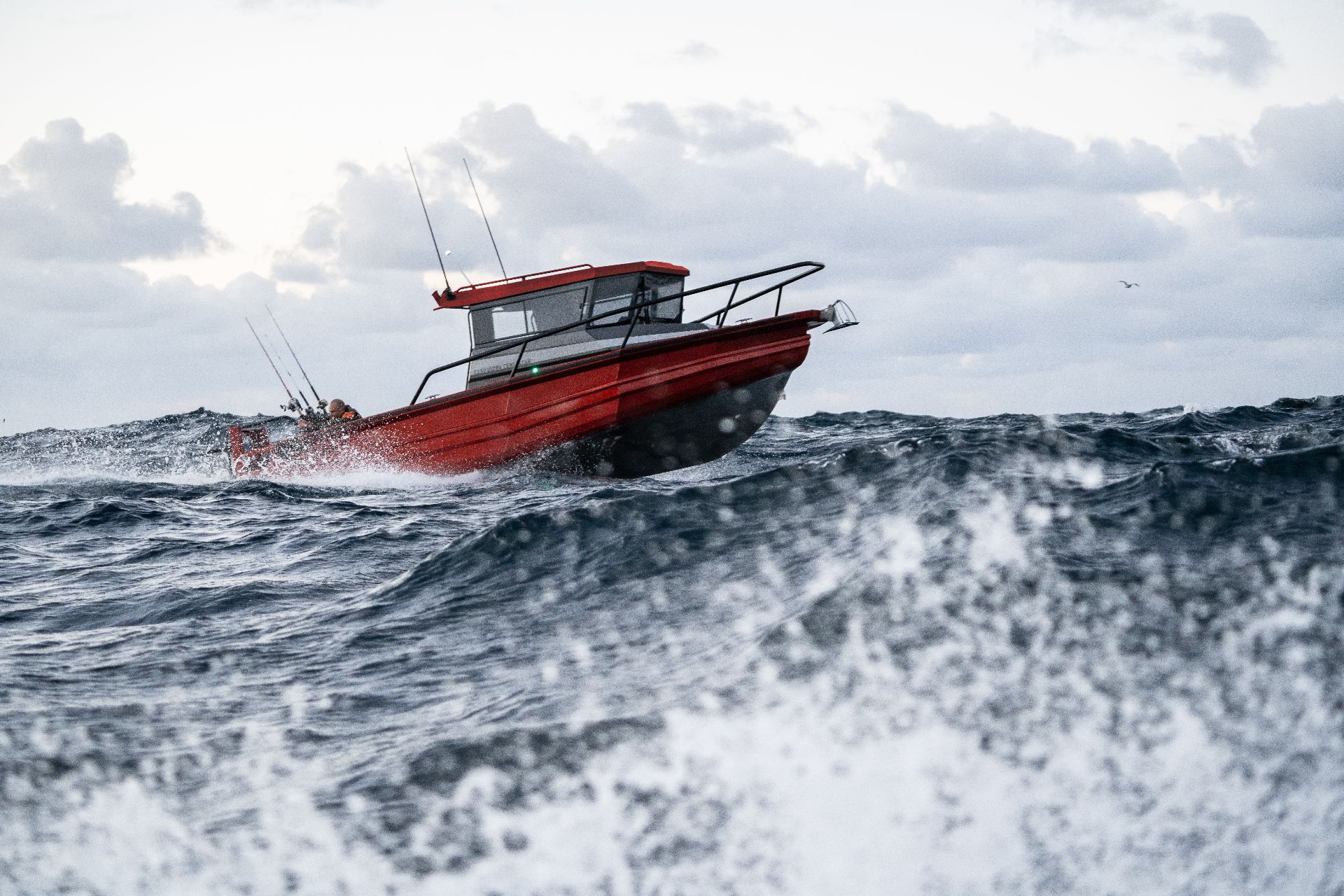

2 years in design, 32 years in evolution and certifiably rough water tested circumnavigating Stewart Island deep in the Roaring Forties. The idea for the 2250 range was primarily born through social media feedback after the 2750 Centrecab started gaining traction. Our customers and fans wanted the function of a full walkaround on a scaled down hull making it a more affordable and manageable boating option. We have given the 2250 design its own purpose. Staunch, aggressive, sharp lines that scream adventure. Stabicraft has a history of taking functional concepts, like the buoyancy chambers, and giving them their own style. It’s by no means conventional, but certainly unique, aggressive and tough

Stabicraft Ultra Centre Cab 2250 UCC Perth Western Australia Hitech Marine Brochure Page 1

Stabicraft UCC 2250 Ultra Centre Cab - Page 2



Stabicraft Ultra CentreCab 2250 Page 3 Brochure

Specifications

Stabicraft 2250 Ultra CentreCab

Length Feet (metres)

22.5ft (6.85m)

Max Persons

8

Recommended HP

225hp

Maximum HP

300hp

Max Engine Weight

299kg (659lbs)

Leg Length

25”

Fuel Tank

300L (79gal)

External Beam

2.54m (101”)

External Beam - Australia

2.50m

Internal Beam

1.97m (77.6”)

Deadrise

17°

Tube Thickness

4mm (0.160”)

Hull Thickness

6mm (0.250”)

Total Sealed Volume (Approx)

2051L (541gal)

Dry Hull Weight (Approx)

1787kg(3940lbs)

Tow Weight (Approx)

2520kg (5555lbs)

Length on Trailer

8.4m (27’6)

Standard Inclusions

Stabicraft 2250 Centre Cab

LED navigation lights

Game Chaser Transom

Arrow Pontoon

Wingstyle Coamings

Stabi cleats x6

Underfloor fish bin

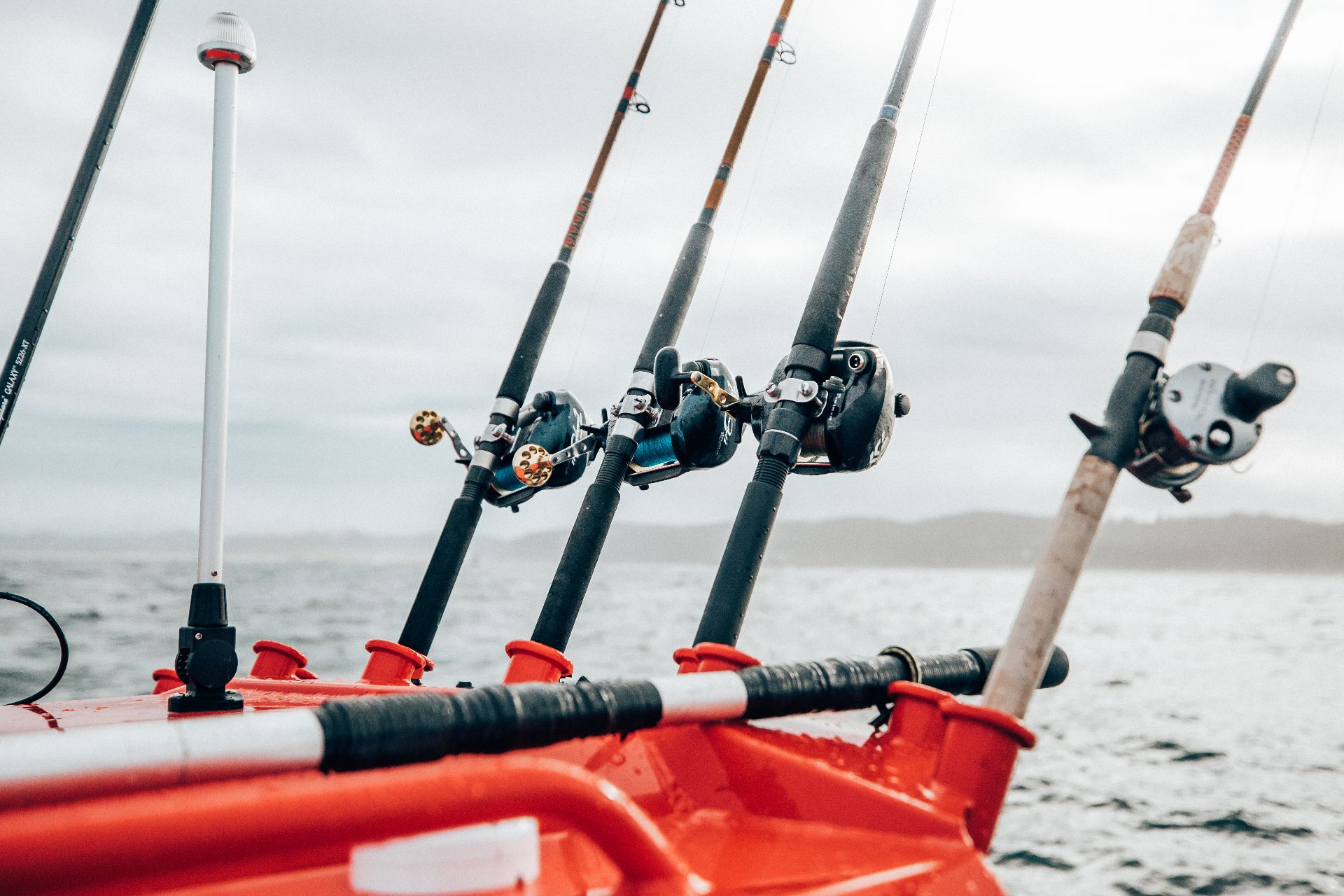

11 roof rod holders

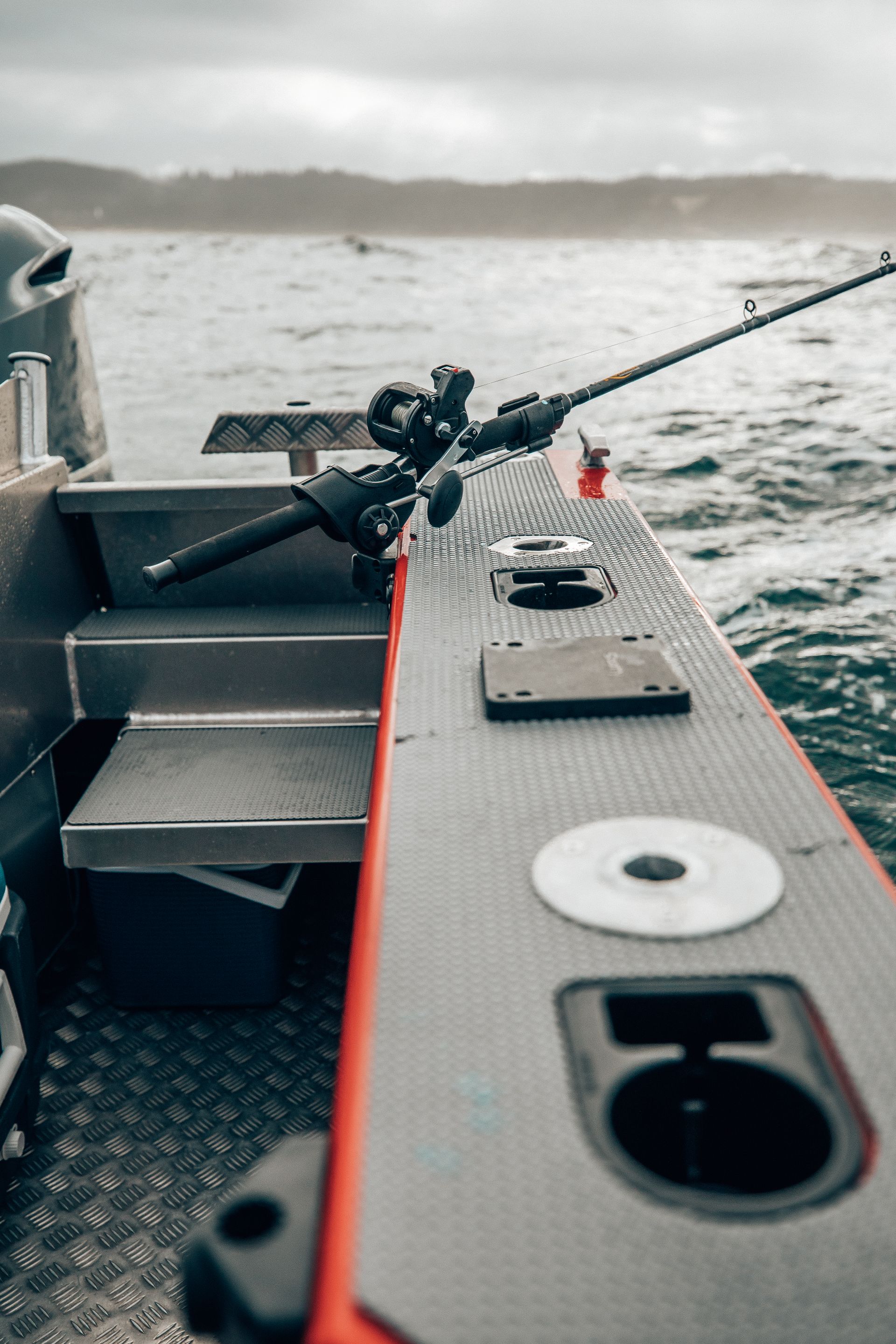

6 S/S gunnel rod holders

4mm pontoons

Bonnet hatch opening

Red white dome light

Hydraulic steering

Trim tab brackets

Fusion speakers pre cut

Twin sliding windows

USB x4

Twin wipers

Flex roof only

Transom walk thru

Downrigger/Electric reel wiring

Safety Features

Stabicraft 2250 Ultra Centre Cab

Reserve Buoyancy

NZ CPC Boat Safety Standards

US Coastguard Boat Safety Standards

LED navigation lights

Australian Builders Plate Boat Safety Standards

For Mobile Users Only- To view all Optional & Standard Features on the Stabicraft 1850 Fisher Series Swipe Left on the below table

Features & Options

Stabicraft 2250 Ultra Centre Cab

Stabicraft 2250 UCC

Standard

Stabicraft 2250 UCC

Offshore

Stabicraft 2250 UCC

Sportfish

Stabicraft 2250 UCC

Superfish

USA transom box w. rear fold down seats

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

Superfish transom box - LBT, w. rear fold down seats

N/A

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

Game transom - LBT, tuna tubes x 2 & tackle drawer

N/A

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Fish pro seating

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

N/A

Bolster seating

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

Fixed pedestal

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

N/A

Soft rider pedestal

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

Rail Seats

N/A

N/A

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Seat box with storage

N/A

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

Fold up long cabin jump seats x2

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

Rear cabin chilly bin seats

N/A

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Vee berth & folding extensions

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Foot rest with dump zone

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

N/A

Tread plate floor, octigrip raised deck & coamings

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

4mm floor, EVA on floor, raised deck & coamings

N/A

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Winch Maxwell drum with rope & chain

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Minn Kota Motor mount

Optional

Optional

Optional

Optional

Planar Diesel Heater

N/A

Optional

Optional

Optional

Electric Toilet (no holding tank)

N/A

Optional

Optional

Optional

Porta potti

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Optional

Optional

Windscreen washer

N/A

Optional

Optional

Optional

Fusion Apollo head unit & signature speakers x 2

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Walkaround lights

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Hella Seahawk decklights x2

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Transom underwater light

N/A

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

3 Vertical Rod travel storage x2

Optional

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Rear clears

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Optional

Optional

Injected Foam fill pontoons

Optional

Optional

Optional

Optional

External gunnel handrails

Optional

Optional

Optional

Optional

Washdown pump

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Radar tower

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Optional

Optional

Rear boarding ladder fold up

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Aux bracket

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Optional

Optional

Lenco 4x12 Trim tabs

Optional

Optional

Optional

Optional

Rear cages w. boarding ladder

N/A

Optional

Optional

Optional

Powdercoated cabin in Spica Pearl

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Powdercoated dash in Spica Pearl

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

Powdercoated Remote Panel in Spica Pearl

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Painted dash (or powder if possible) to match paint

N/A

N/A

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Powdercoated roof Spica Pearl

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

N/A

Painted roof (or powder if possible) to match paint

N/A

N/A

N/A

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Belting up paint (non metallic)

N/A

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

N/A

Full Paint (non metallic)

N/A

N/A

Optional

Stabicraft 2250 Ultra Centre Cab Standard, Offshore, Sportfish, Superfish

Paint metallic upgrade

N/A

N/A

Optional

Optional
