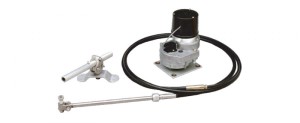

The SD10 is a mechanical drive unit featuring built-in rudder feedback for sailboats between 25ft and 37ft. The SD10 partners with the Simrad AC12 autopilot computer as part of an autopilot system. (Access to a quadrant or tiller is required).
Key Features
- Highly Accurate
- Powerful
- Easy & Economical
- 12V DC Power Supply
- Integrated Rudder Feedback
- Simrad Yachting Construction
Click Here to View detailed specifications and downloads
Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience.
Powerful
180kg of cable thrust ensures the rudder moves, even under heavy loads.
Easy & Economical
Reduce the price of your installation with this cost effective package.
12V DC Power Supply
Integrated Rudder Feedback
The built-in rudder feedback unit ensures gentle and accurate steering.
Simrad Yachting Construction
Brutally strong and built to withstand the environment.
Power |
|
|
Power Consumption |
Peak power: 7 A Clutch Circuit Power: 0.85 A |
|
Power Supply (Supply Voltage) |
12V DC |
Autopilot/Auto-Steering |
|
|
Max Boat Length [m] |
11 |
|
Max Stroke |
305 |
|
Max Torque [Nm] |
450 |
|
Peak Thrust |
180 kg (from cable |
|
Max Boat Displacement [tons] |
6500 |
Technical/Environmental |
|
|
Product Width [mm] |
150 |
|
Product Height [mm] |
225 |
|
Product Depth [mm] |
150 |
|
Weight [kg] |
4 |
