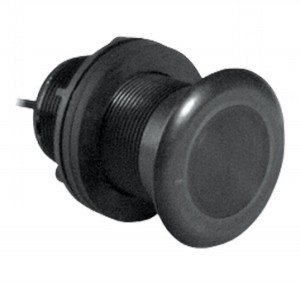

Simrad P319 Depth/Temperature Transducer

The P319 is a bronze, thru-hull Broadband transducer, ideal for smaller sportfishing and commercial vessels up to 8 m (25 ft) in length, fishing in depths of less than 900 m (3000 ft).

Key Features

• 50 kHz with 45° beam width
• 200 kHz with 12° beam width
• Up to 900 m (3000 ft) range at 50 kHz
• 1 internal broadband ceramic
• Thru-Hull with bronze housing
• Suitable for fiberglass and wood hulls
• Ideal for sportfishing and commercial vessels up to 8 m (25 ft) in length
• Recommended for use with the SonarHub sounder module, Simrad NSS evo2 & NSS sport multifunction displays

Dual Frequency

The dual-frequency P319 includes a single ceramic element delivering both 50 kHz with a 45° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

Depth/Temperature

One sensor does it all. Able to measure both depth and temperature in a single package, the P319 simplifies installation and requires just one connection to your echosounder module or multifunction display.

Mounting

With bronze housing, the P319 is suitable for thru-hull mounting in fiberglass and wood hulls. Thru-hull mounting places the transducer in the water on the outside of your boat’s hull; a hole must be drilled for installation, and a fairing block is required to ensure proper alignment. This typically offers the best depth measurement and fishfinding performance.

Part # 000-0136-02.
