SeaPro - more power for the job

Mercury engineers strategically trimmed weight to produce some of the lightest engines in the class—by up to 30 pounds—and the powerhead configuration has been optimized to minimize size. Ideal for commercial fishing vessels, commercial workboats and law-enforcement boats.

The new Mercury SeaPro V-8 and V-6 outboard models bring more of everything to the job—more displacement, more power, more efficiency and more durability. The impressive muscle of our new 4.6-litre V-8 and 3.4-litre V-6 powerheads is specifically designed for commercial duty and delivers our best-ever fuel economy. The combination of ample torque and low weight makes these engines ideal for heavily-loaded boats. Guaranteed to do its job, so you can do yours.

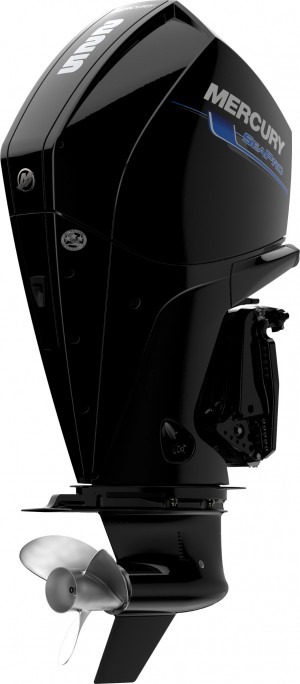

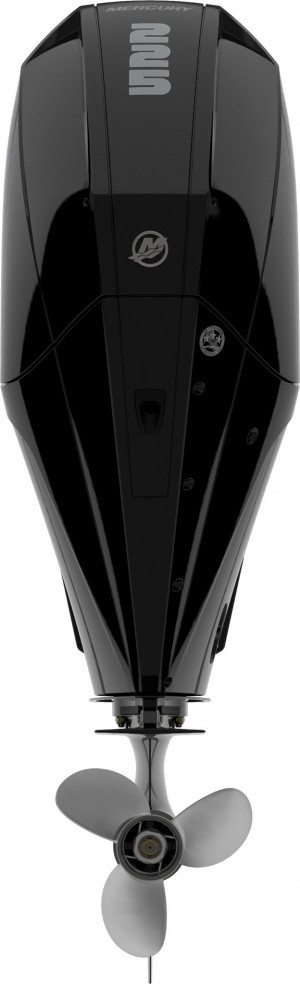

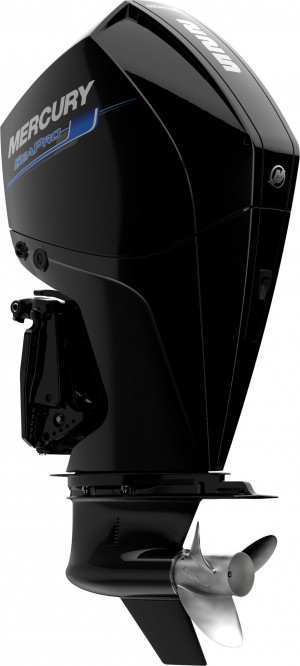

Mercury 225 HP SeaPro Specifications

HP / kW

225 / 168

Engine type

V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves

Displacement (CID/CC)

279 CID

Displacement (L)

4.6L

Full throttle RPM

4800-5600

Air induction

Performance-Tuned Long-Runner Intake Manifold

Fuel induction system

Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization

Alternator amp / Watt

85-amp (1071 Watt) with Idle Charge

Recommended fuel

Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum

Recommended oil

NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)

Engine protection operator warning system

SmartCraft Engine Guardian

Starting

Electric Start with SmartStart Protection

Controls

Standard: Mechanical Control with Digital Throttle & Shift / Standard: Digital Throttle & Shift (DTS)

Steering

Hydraulic

Shaft length

20" / 508 mm

25" / 635 mm

30" / 762 mm

Gearcase ratio

1.75:1

Dry weight *Lightest model available

527 lbs / 239 kgs

CARB star rating

3

Bore and stroke

3.6 in x 3.4 in / 92 mm x 86 mm

Ignition

SmartCraft PCM 112 Digital Inductive

Cooling system

Water-cooled with thermostat

Gear shift

F-N-R

Gearcase options

5.44"

Trim system

Power trim and tilt

Exhaust system

Through prop

Colour

Phantom Black

Lubrication system

Integrated wet sump

Oil Capacity

7.0 Quarts / 6.6 Litres

Maximum Trim Range

20° (-6° to 14°)

Maximum Tilt Range

73° (-6° to 67°)

Engine 1

Engine Make Mercury SeaPro
Displacement 4.6
Horse Power 225
Fuel Type Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Drive Type Outboard
Stroke 4-Stroke

Downloads

200-300HP Seapro Brochure
