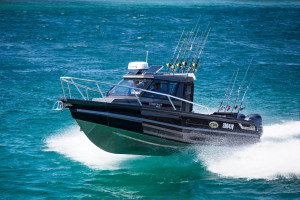

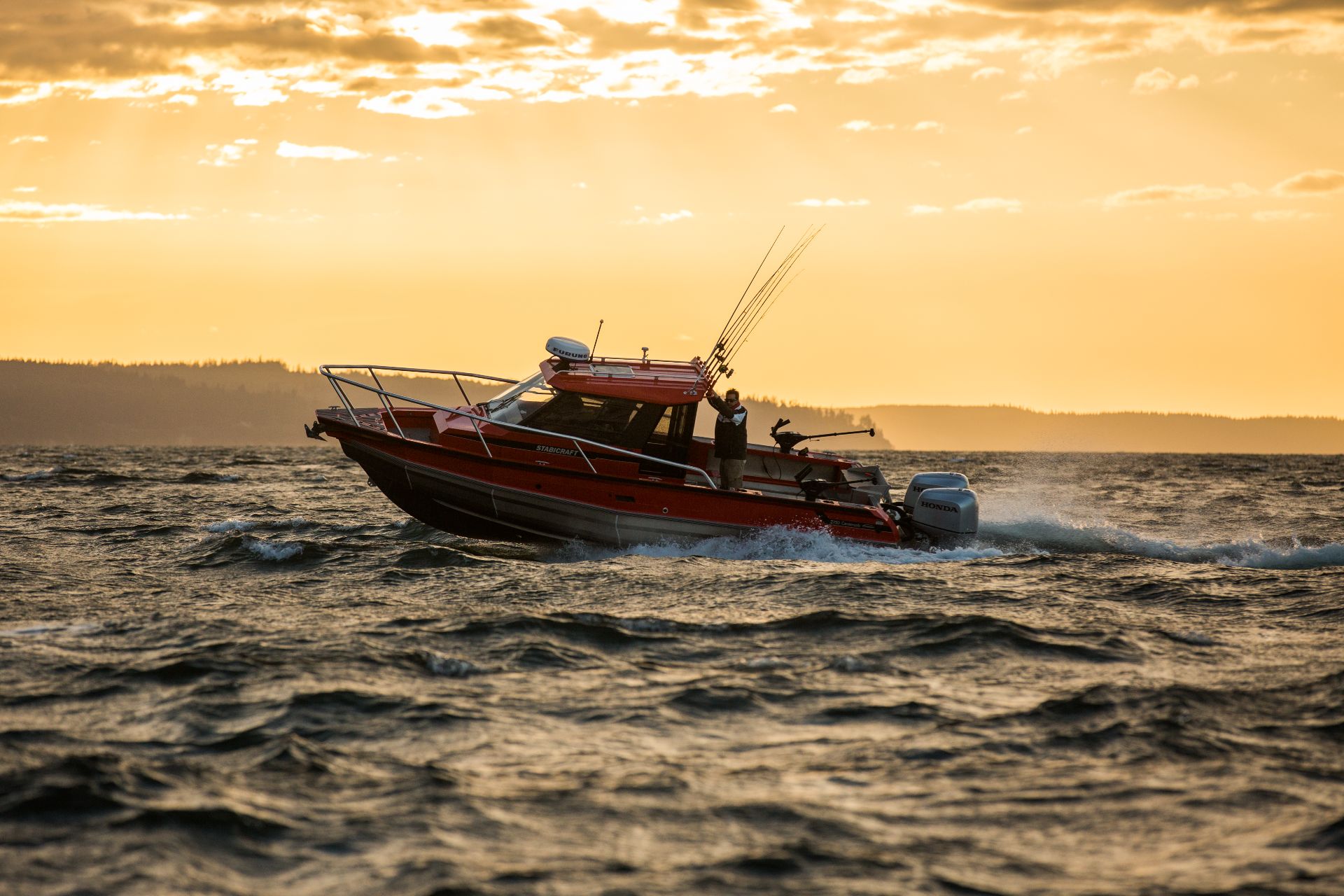

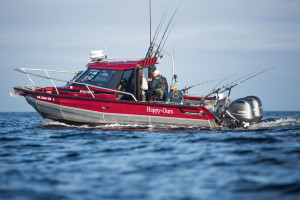

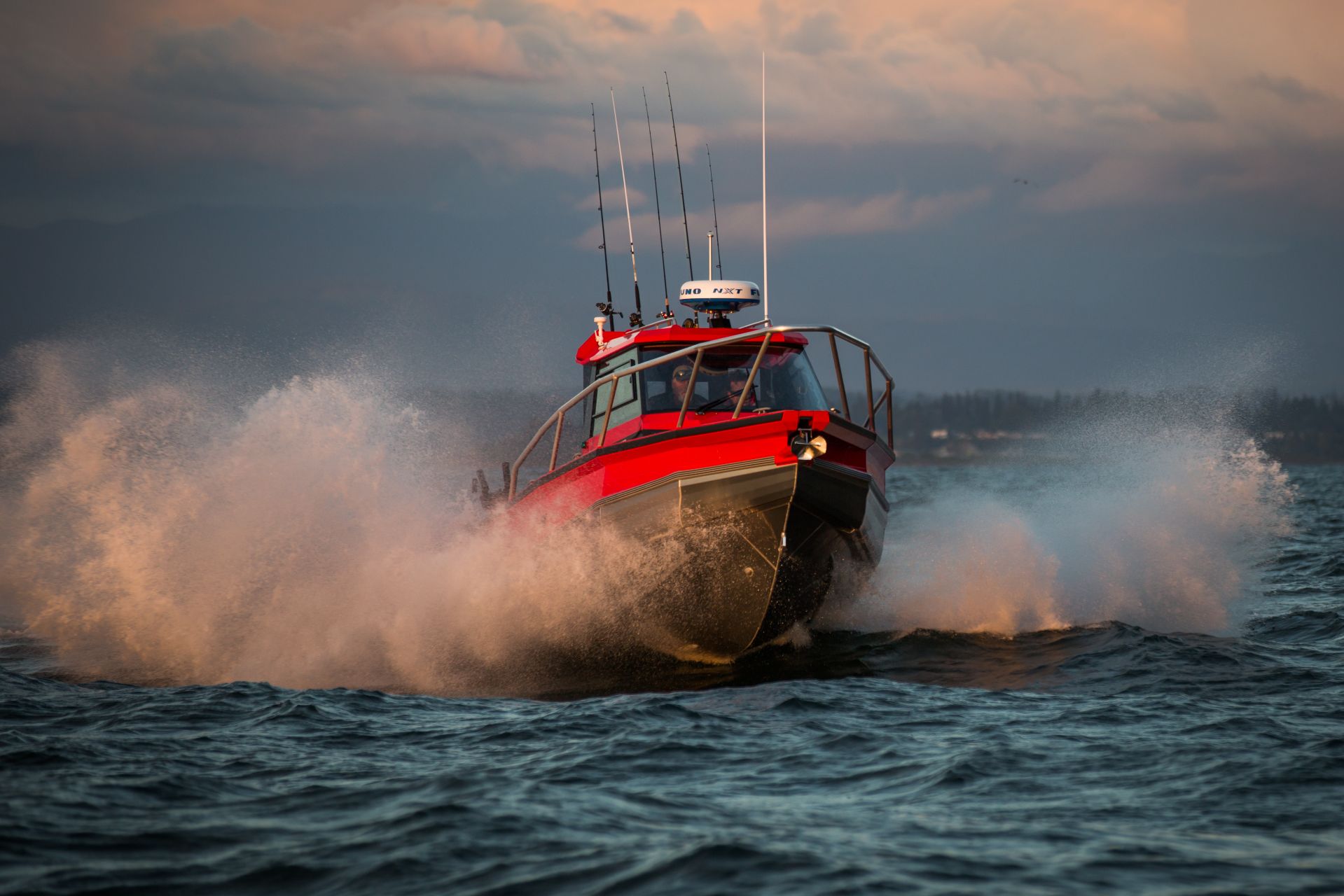

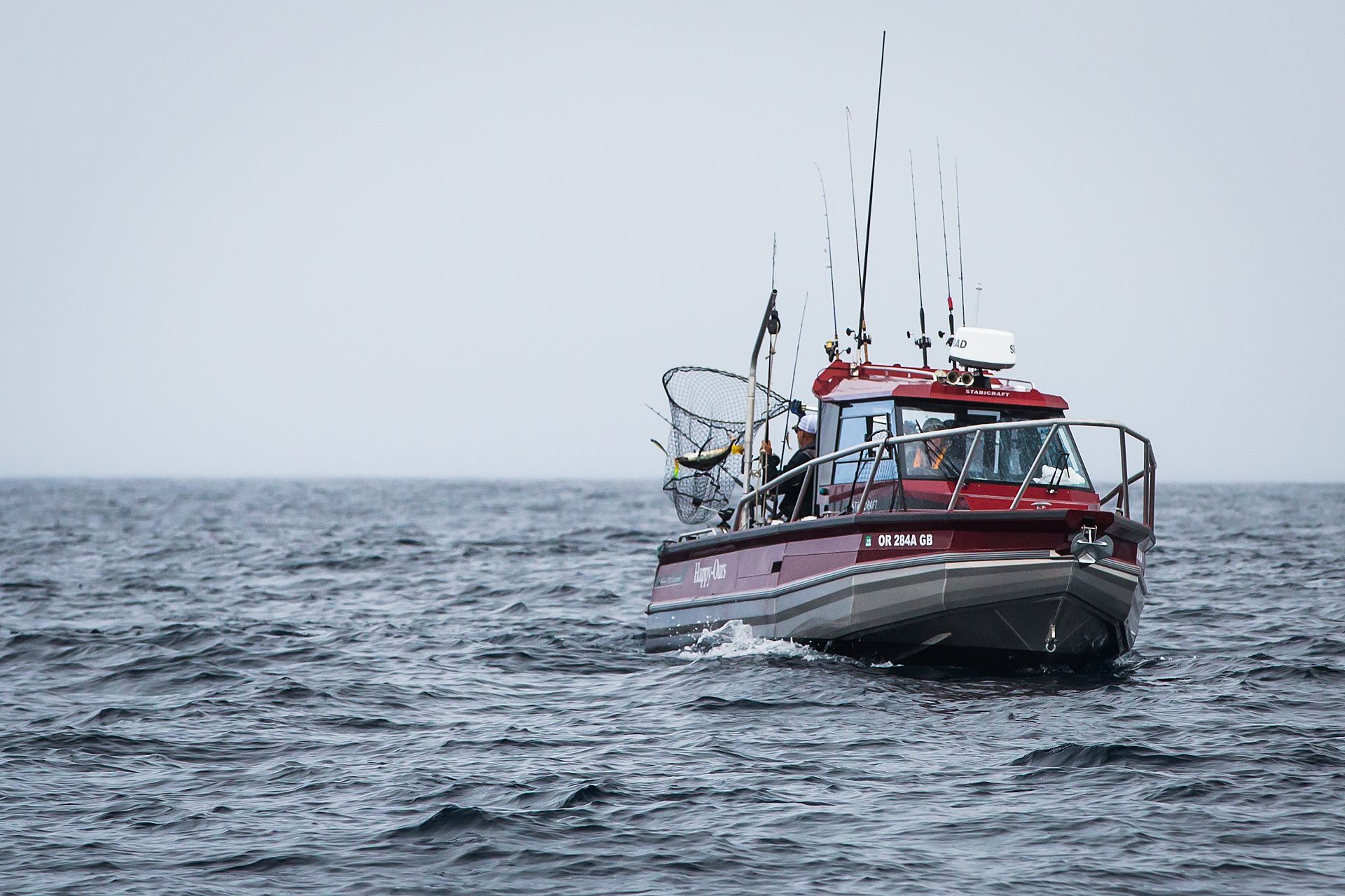

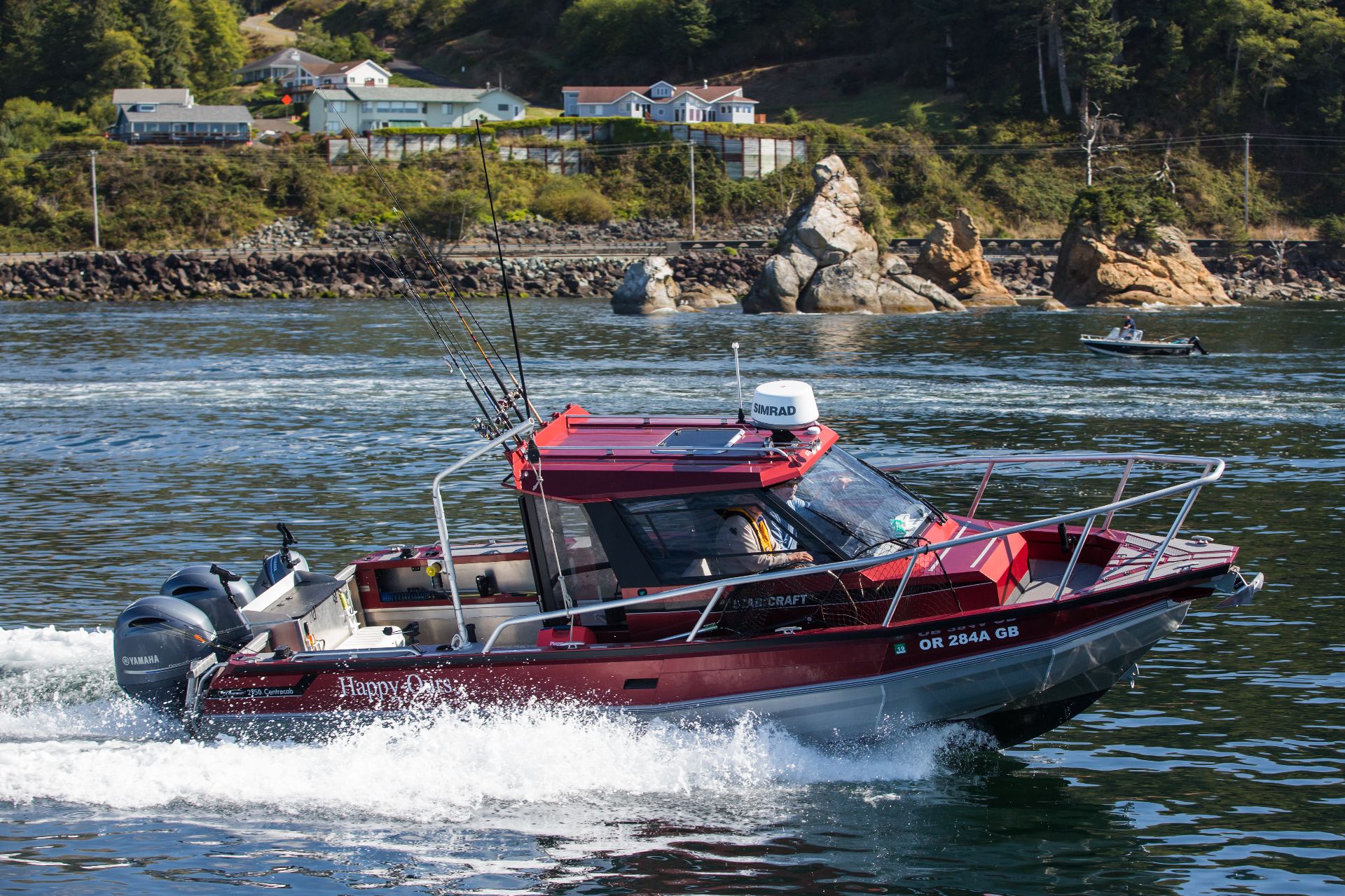

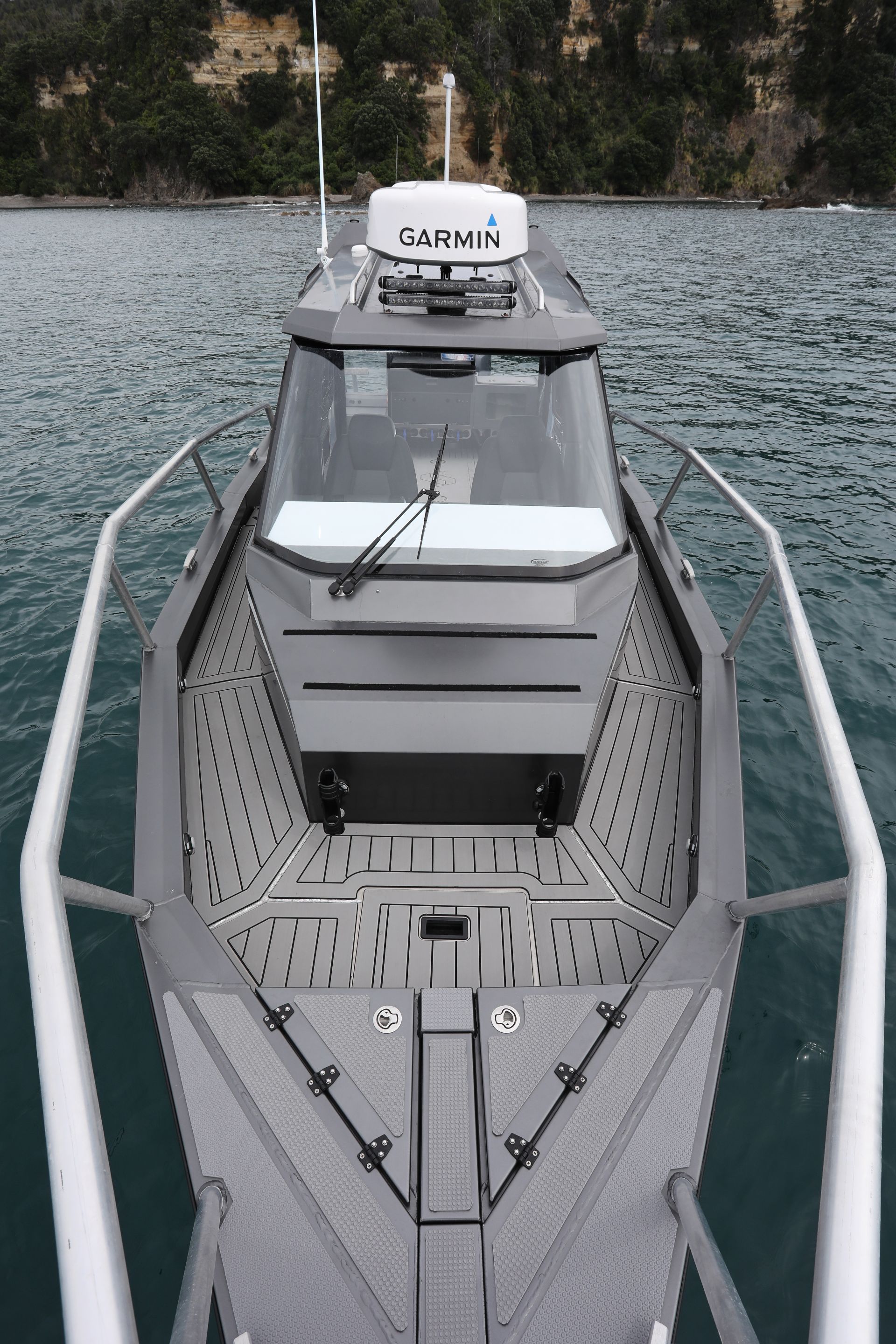

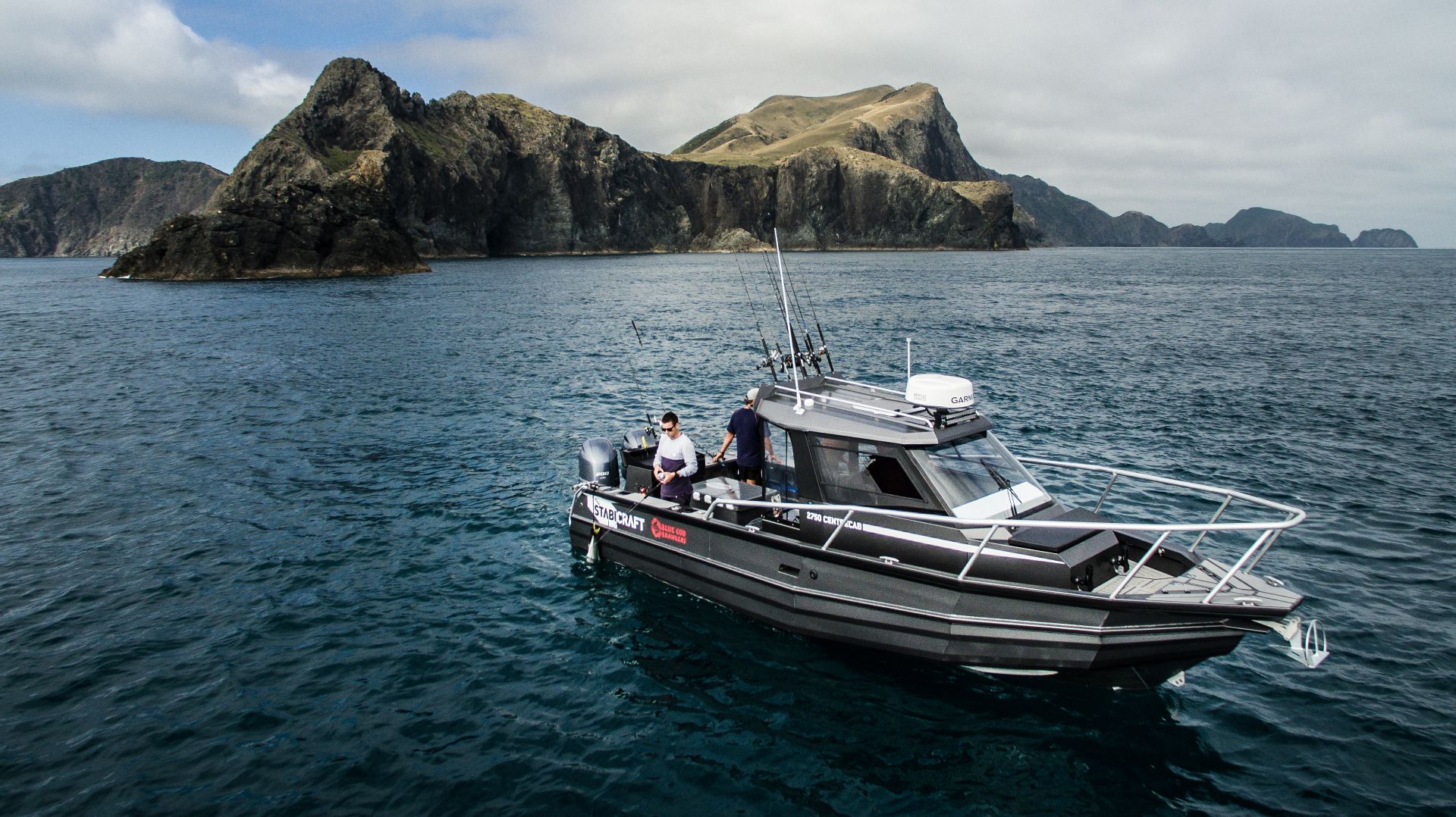

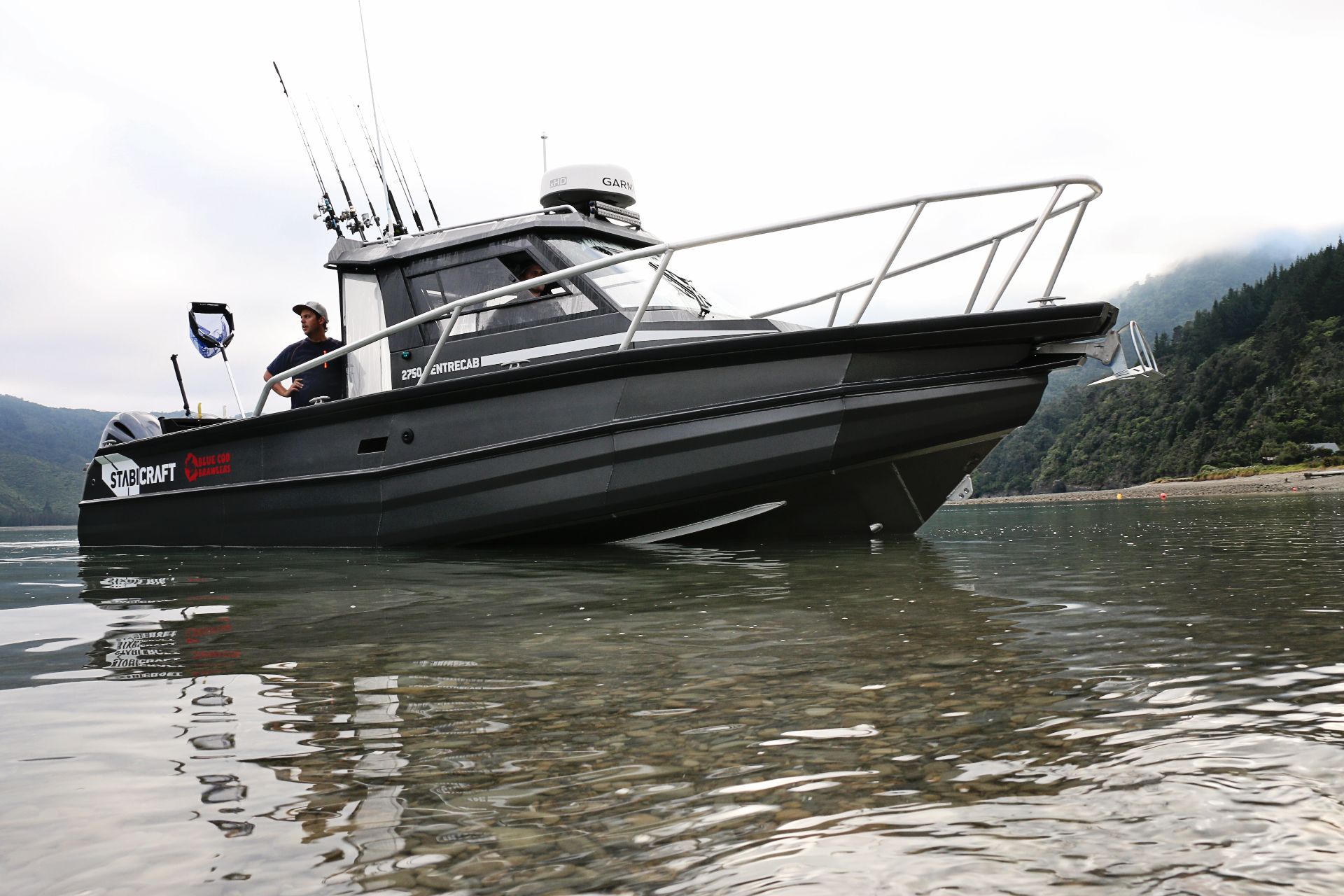

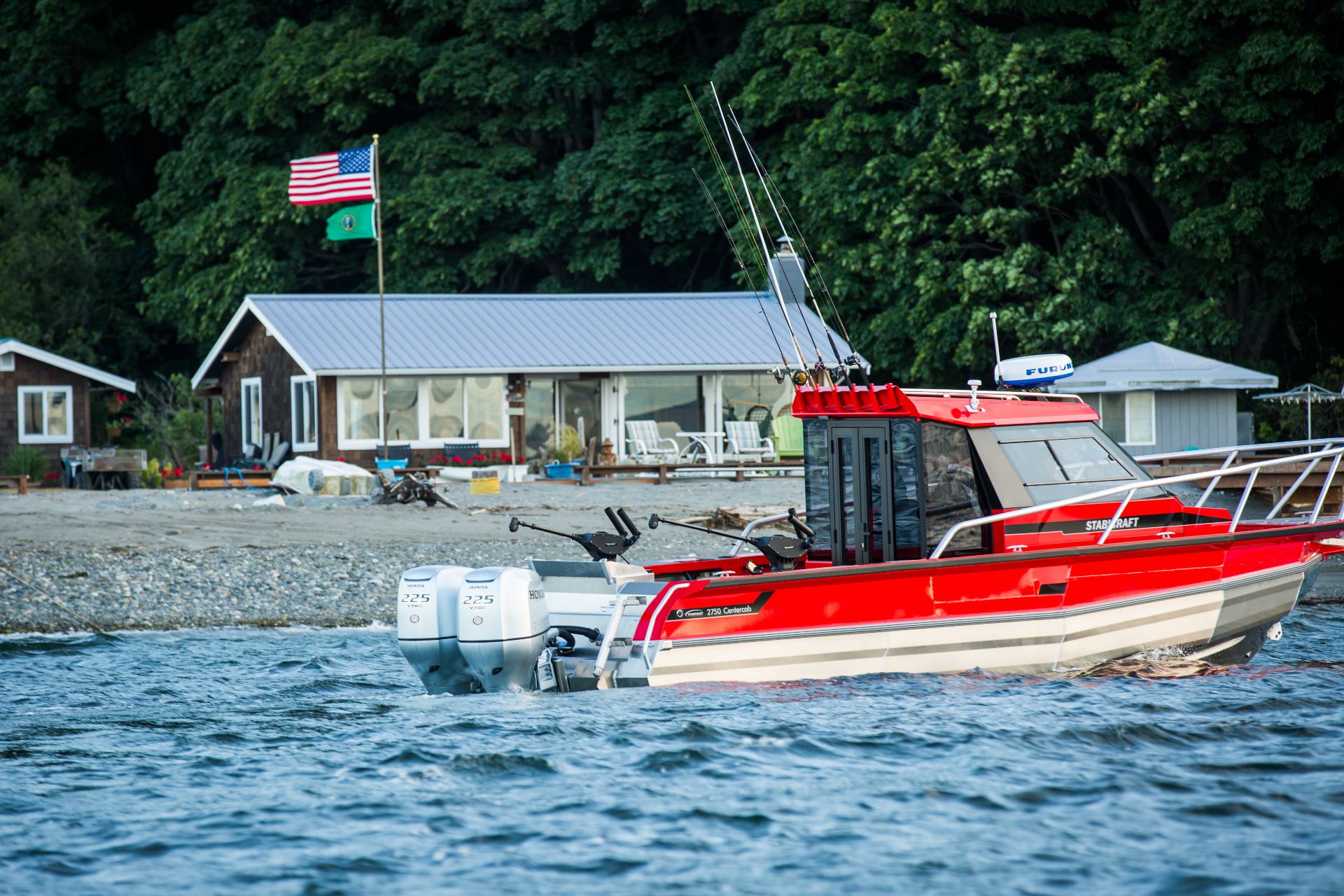

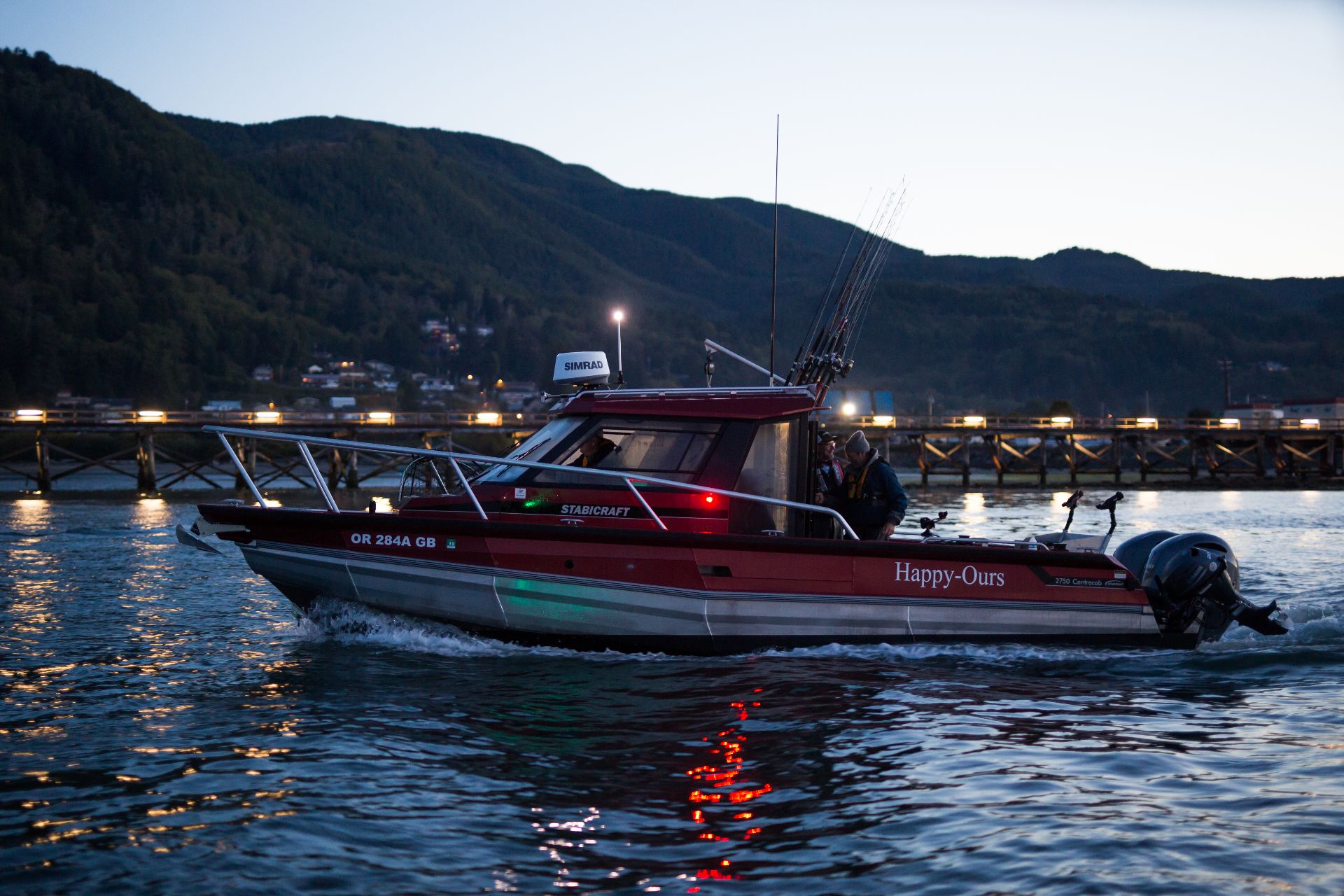

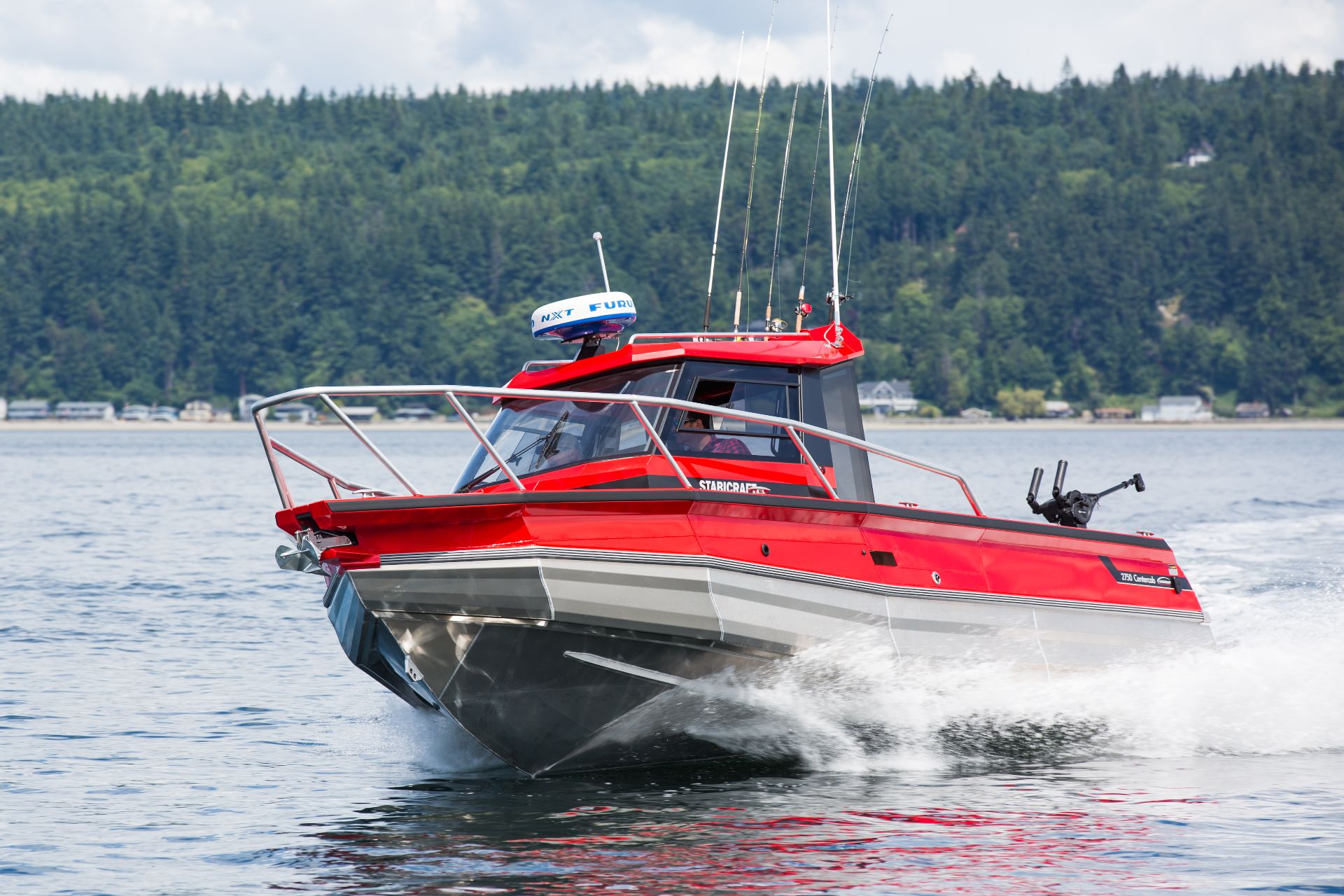

The 2750 is Stabicraft’s first Centrecab model. It has a wide walk-around the main cabin up to the forward deck giving the 2750 a fully utilized fishing deck.

2750 Stabicraft Centrecab - Boat Brochure Page 1

Stabicraft 2750 Centre Cab - Boat Brochure Page 2



Specifications

Stabicraft 2750 Centrecab

Length Feet (Metres)

27.5’ft (8.4m)

Max Persons

9

Recommended HP

300hp

Maximum HP

500hp

Max Engine Weight

635kg (1400lbs)

Leg Length

Twin 25”

Fuel Tank

500L (132gal)

External Beam

2.54m (100”) (2.5m AUS)

Internal Beam

2.04m (80”)

Deadrise

21.5°

Tube Thickness

4mm (5/32")

Hull Thickness

6mm (15/64")

Total Sealed Volume (Approx)

2909L (768gal)

Dry Hull Weight (Approx)

1990kg (4387lbs)

Tow Weight (Approx)

3500kg (7716lbs)

Length on Trailer

10.2m (33’6”)

Safety Features

2750 Centrecab Stabicraft

Reserve Buoyancy

NZ CPC Boat Safety Standards

US Coastguard Boat Safety Standards

LED navigation lights

Australian Builders Plate Boat Safety Standards

Standard Features

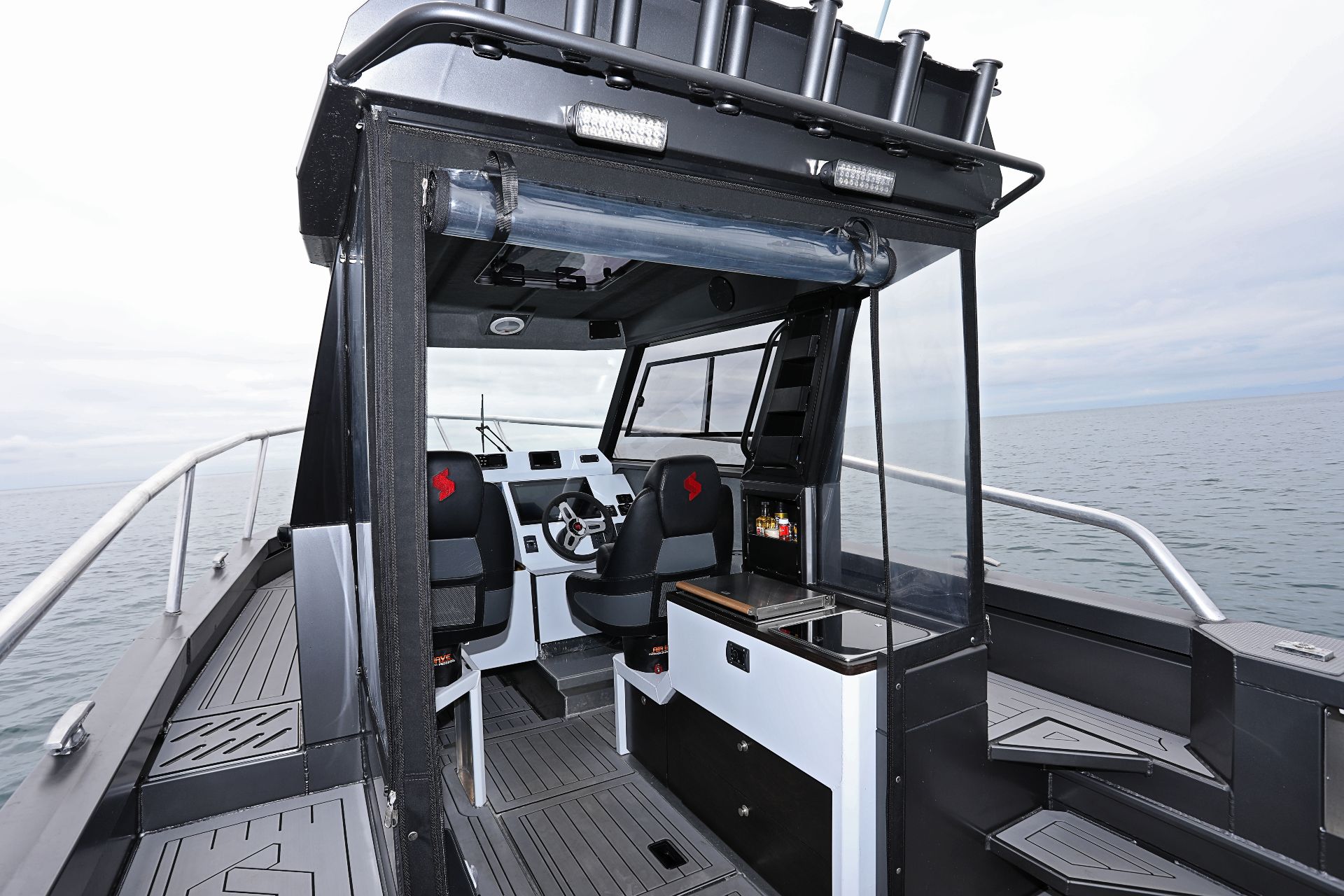

Stabicraft 2750 Centre cab

LED Navigation Lights

Starboard Rear 2 Step Boarding Ladder with Alloy Boarding Rail

6mm Windscreen

Red/White Dome Cabin Lights x2

Twin LED Cabin Lights

Sixway Dash Switch Panels x 2

Radar Tower (low)

Cabin Lining

Twin Windscreen Wiper & Windscreen Washer Kit

Full V-Berth Squab with Extensions & Centre Infill Vinyl Squabs

Starboard Cabin Sliding Window

Portside Cabin Sliding Window

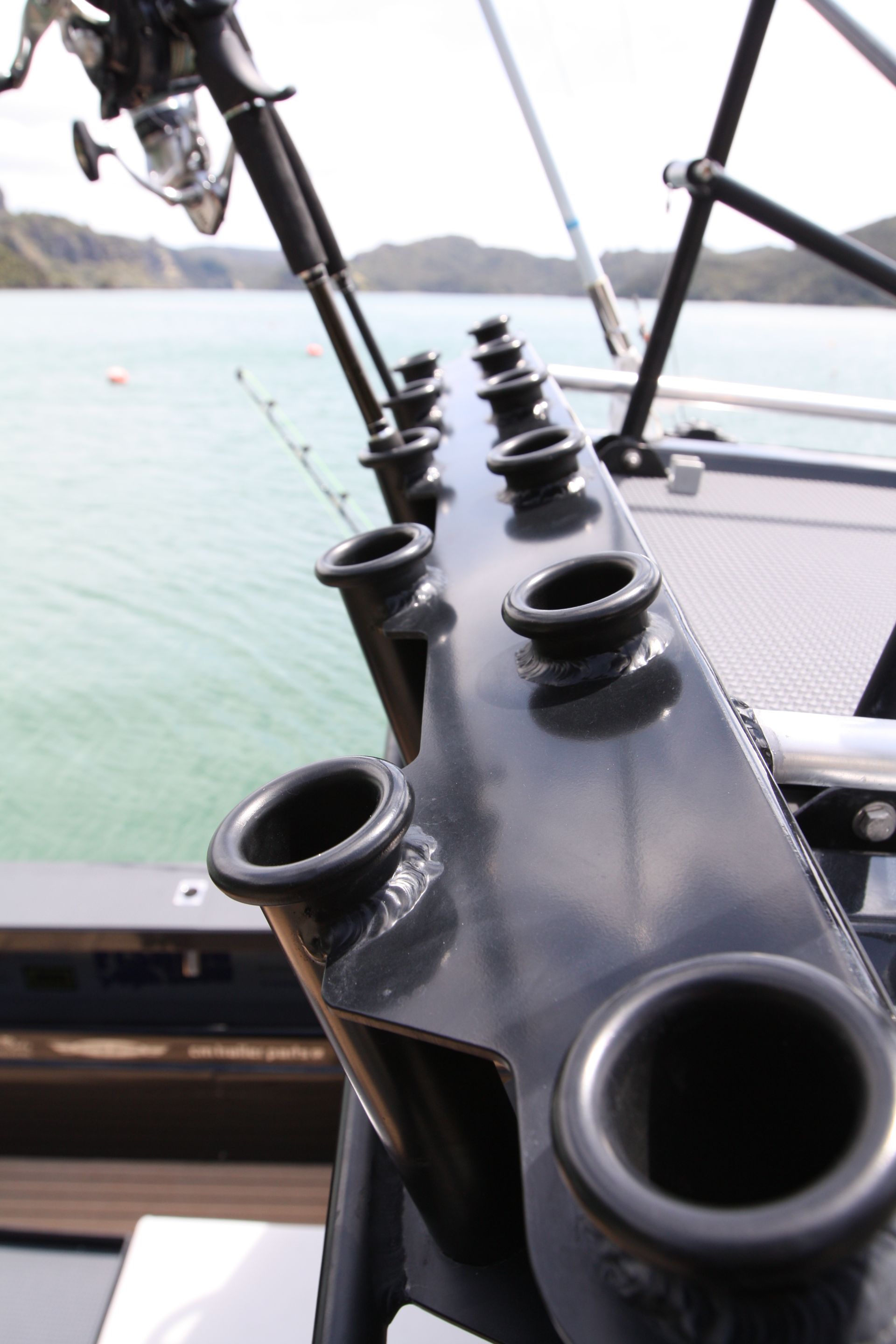

Roof with Fanned Double Row of Rodholders (11) and Internal Roof Handrail x1

Aerial with Splitter

Maxwell Bonnet Hatch

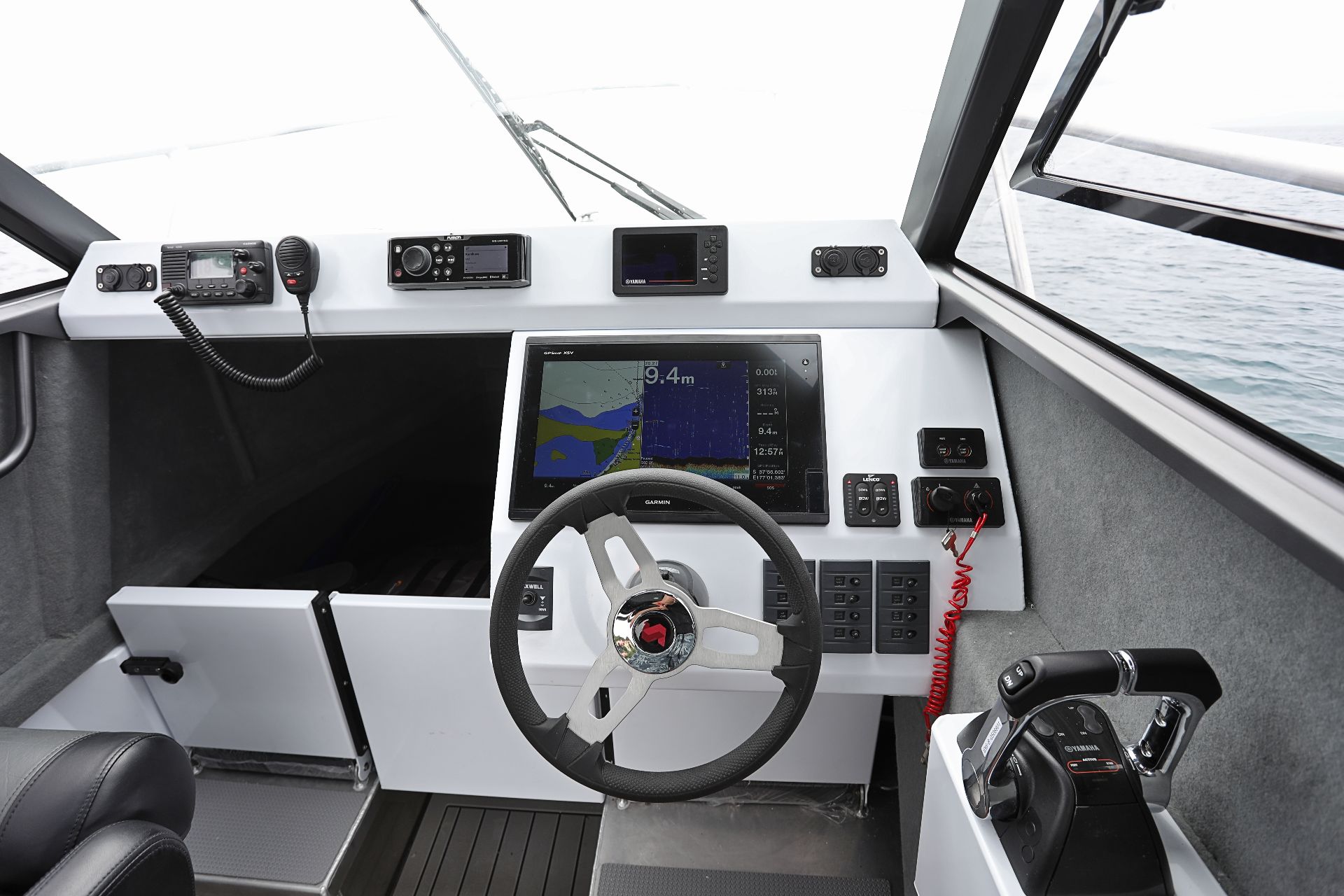

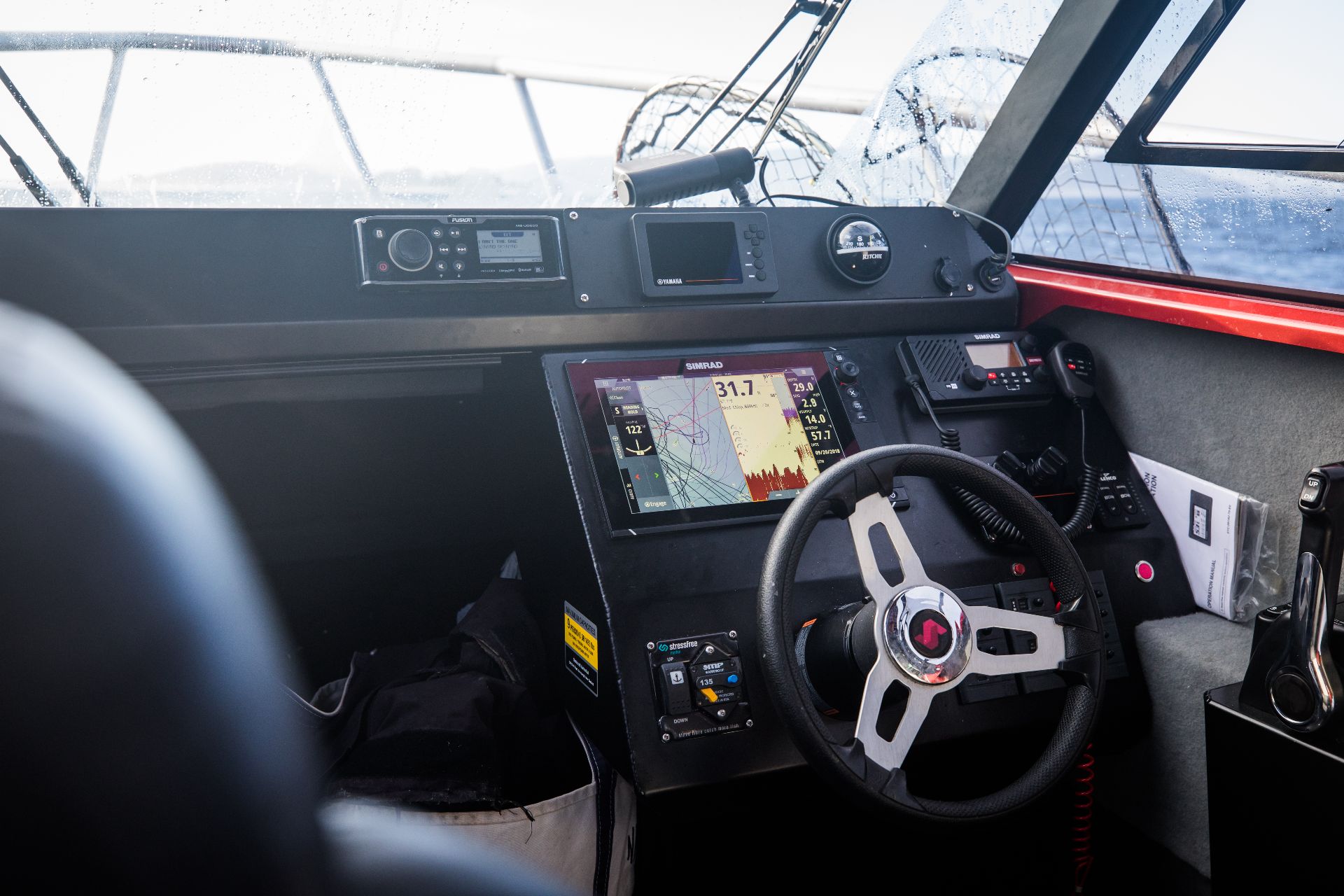

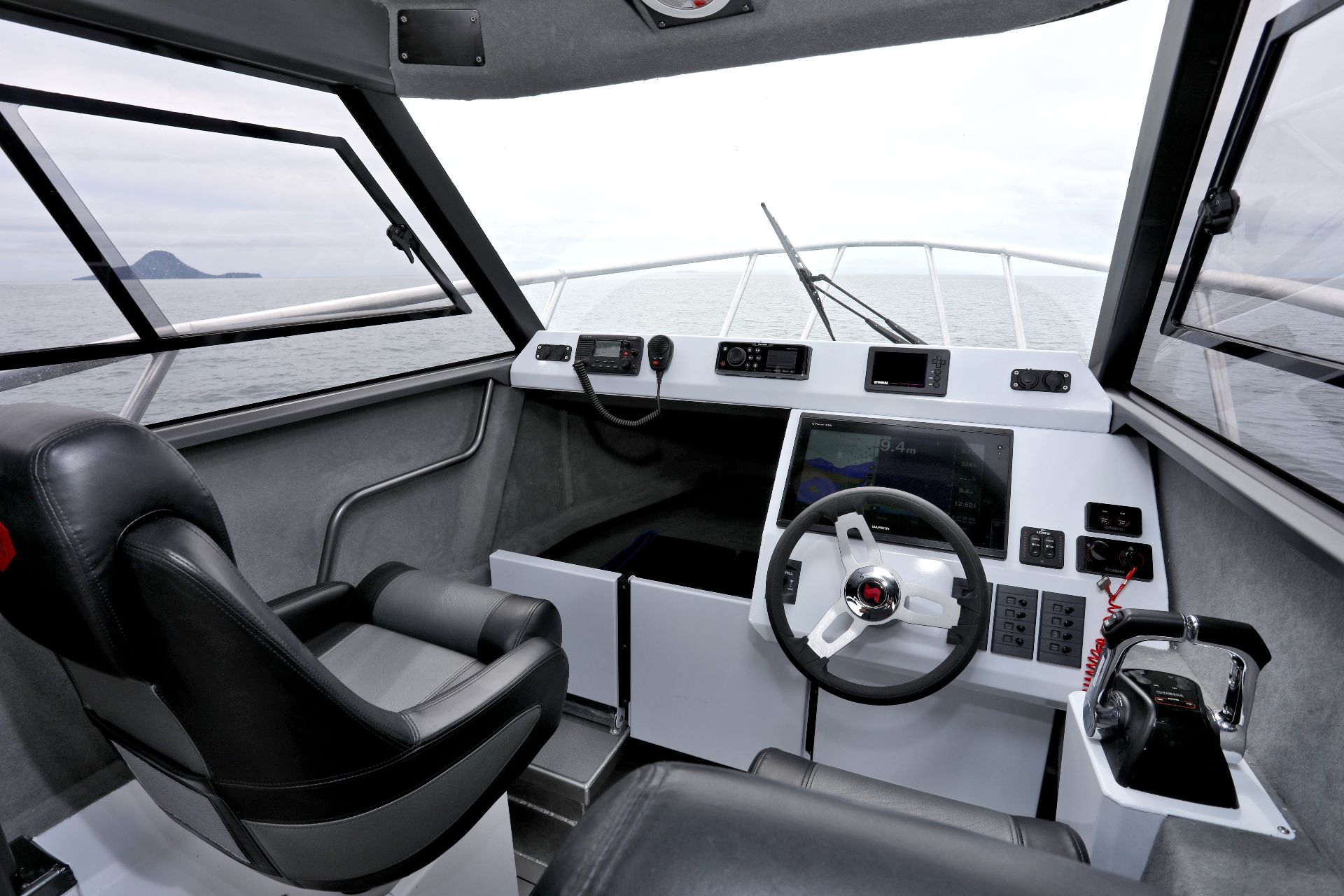

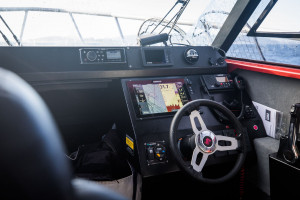

Dash & Shelf

Cabin Rear Wall Drop Curtain

Fusion Apollo 770 Head Unit & 4 Fusion Speakers

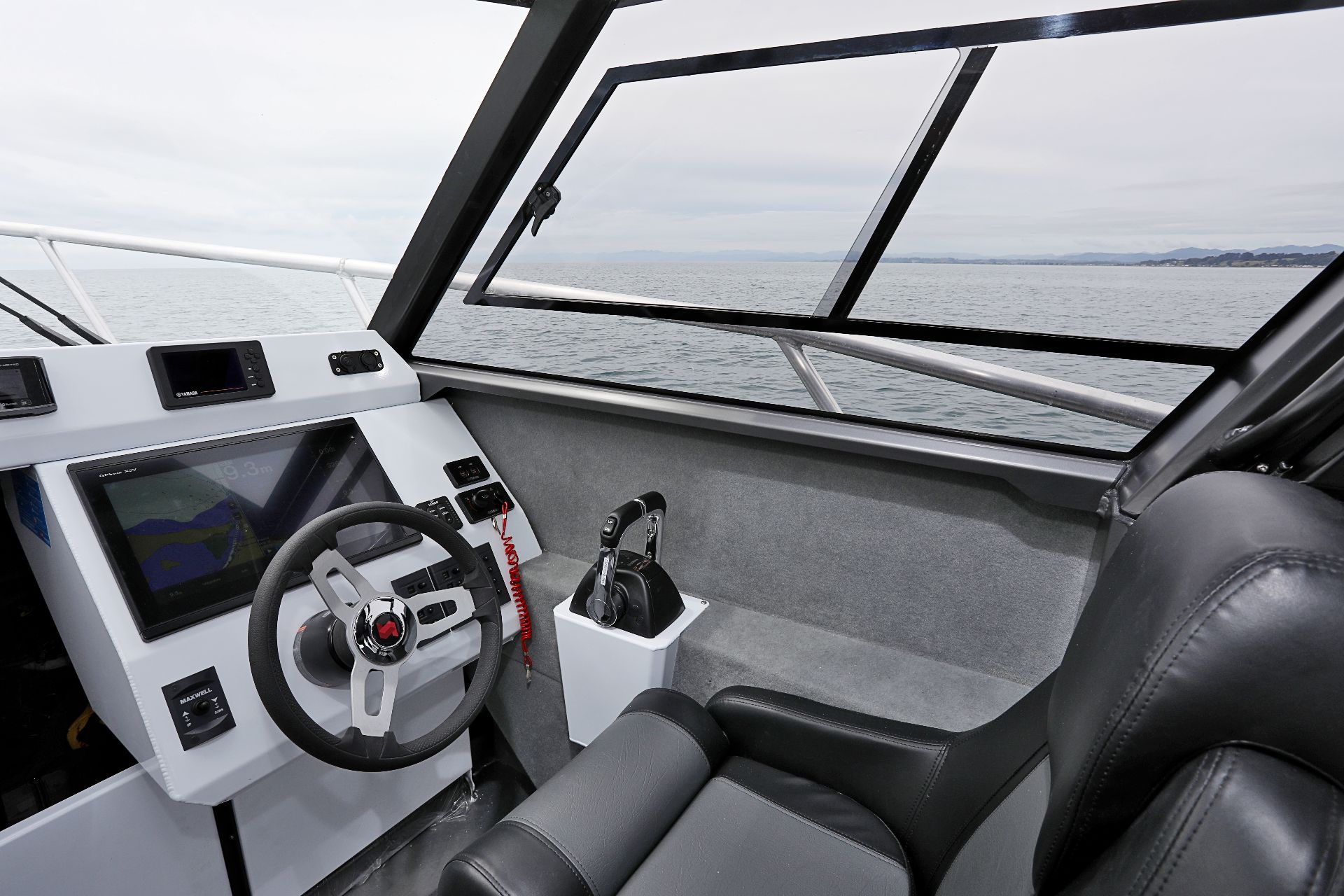

Sea Star Steering - Hydraulic

Soft Touch Gussi Steering Wheel

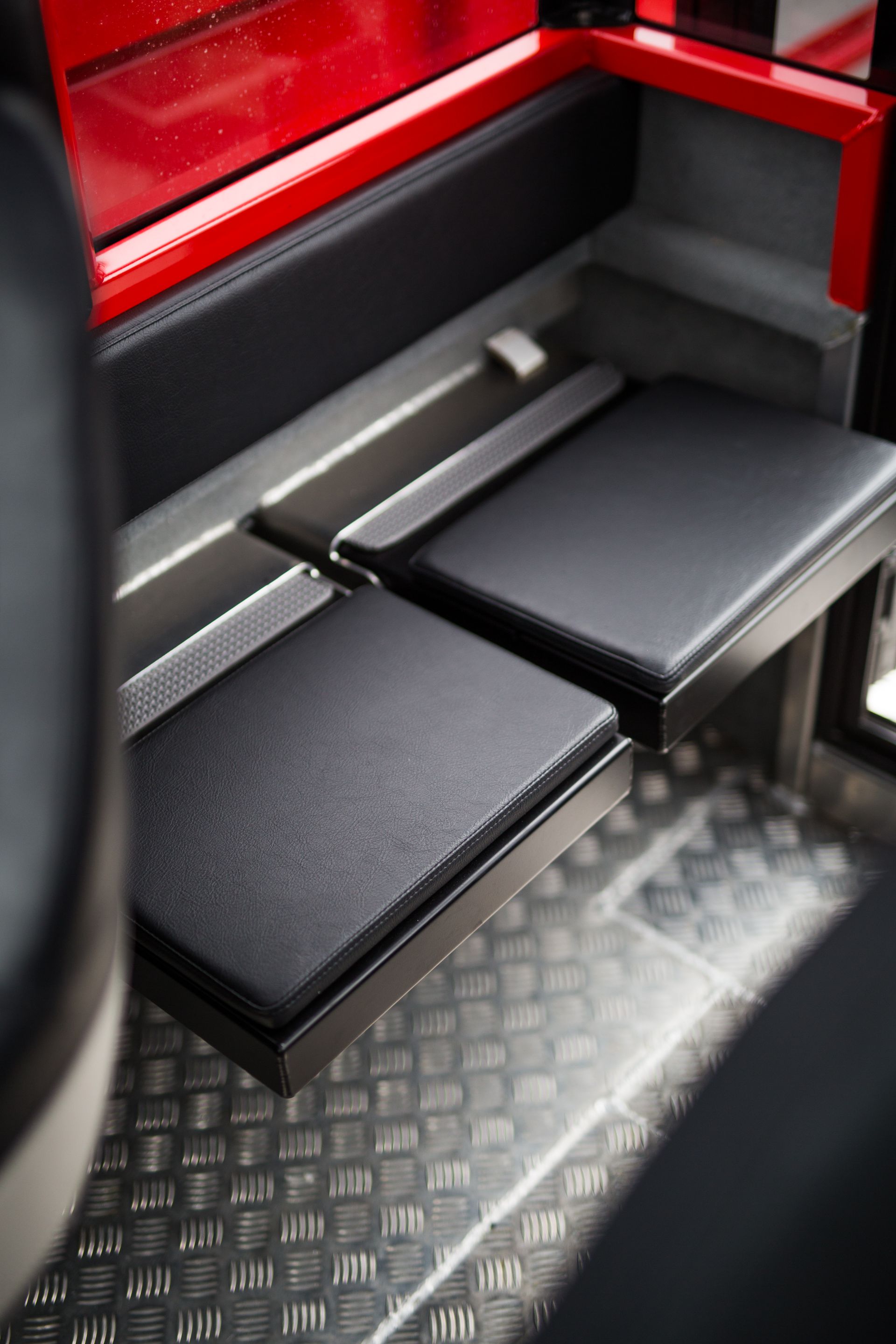

Port PWC Spica Pearl Cabin Troop Fold Down Seat (2) with Stabicraft Squab x 2 (no Galley)

Starboard PWC Spica Pearl Cabin Troop Fold Down

Seat (2) with Stabicraft Squab x 2

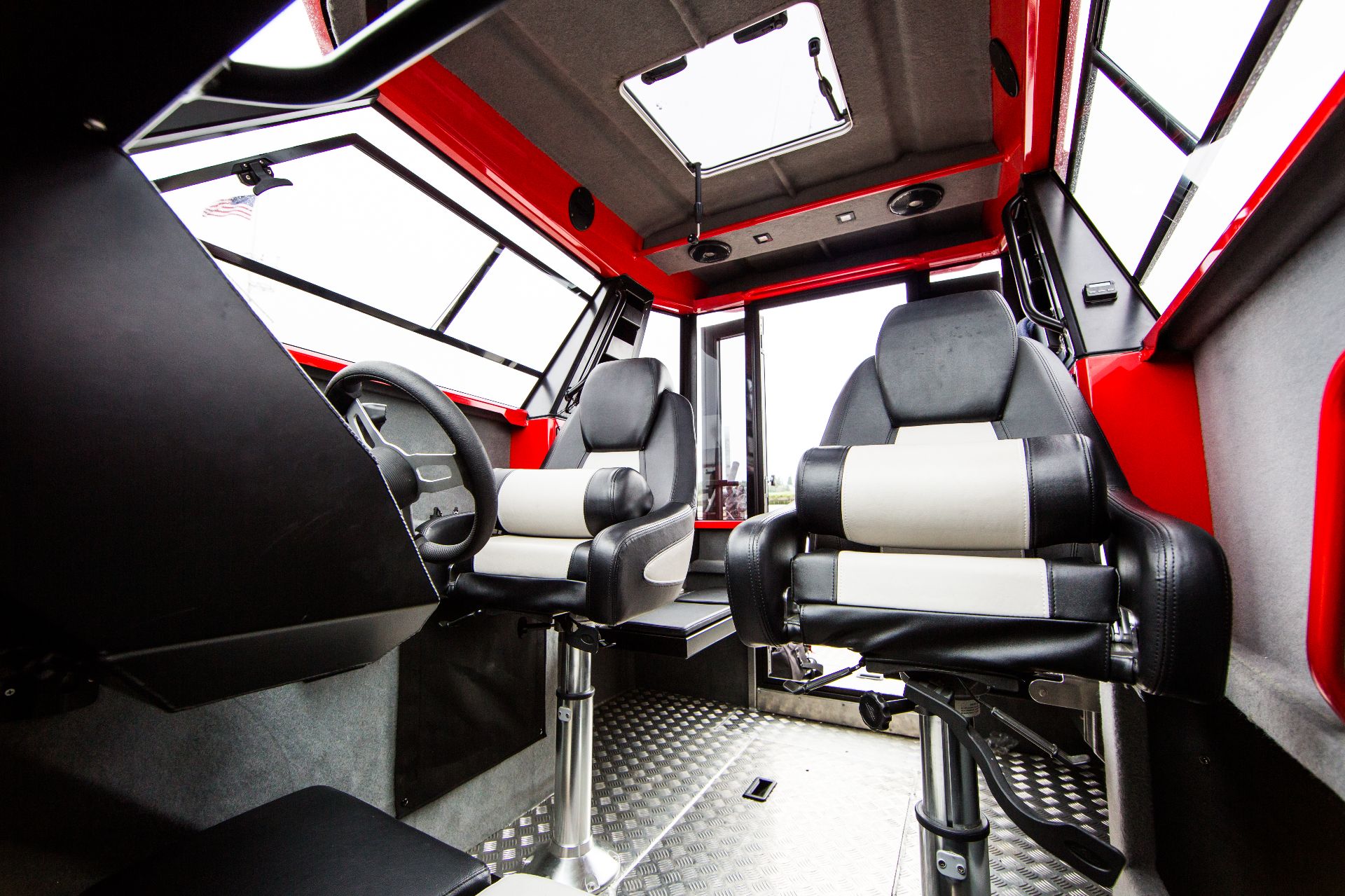

Elite Bolser Seating

Airwave Seat Bases

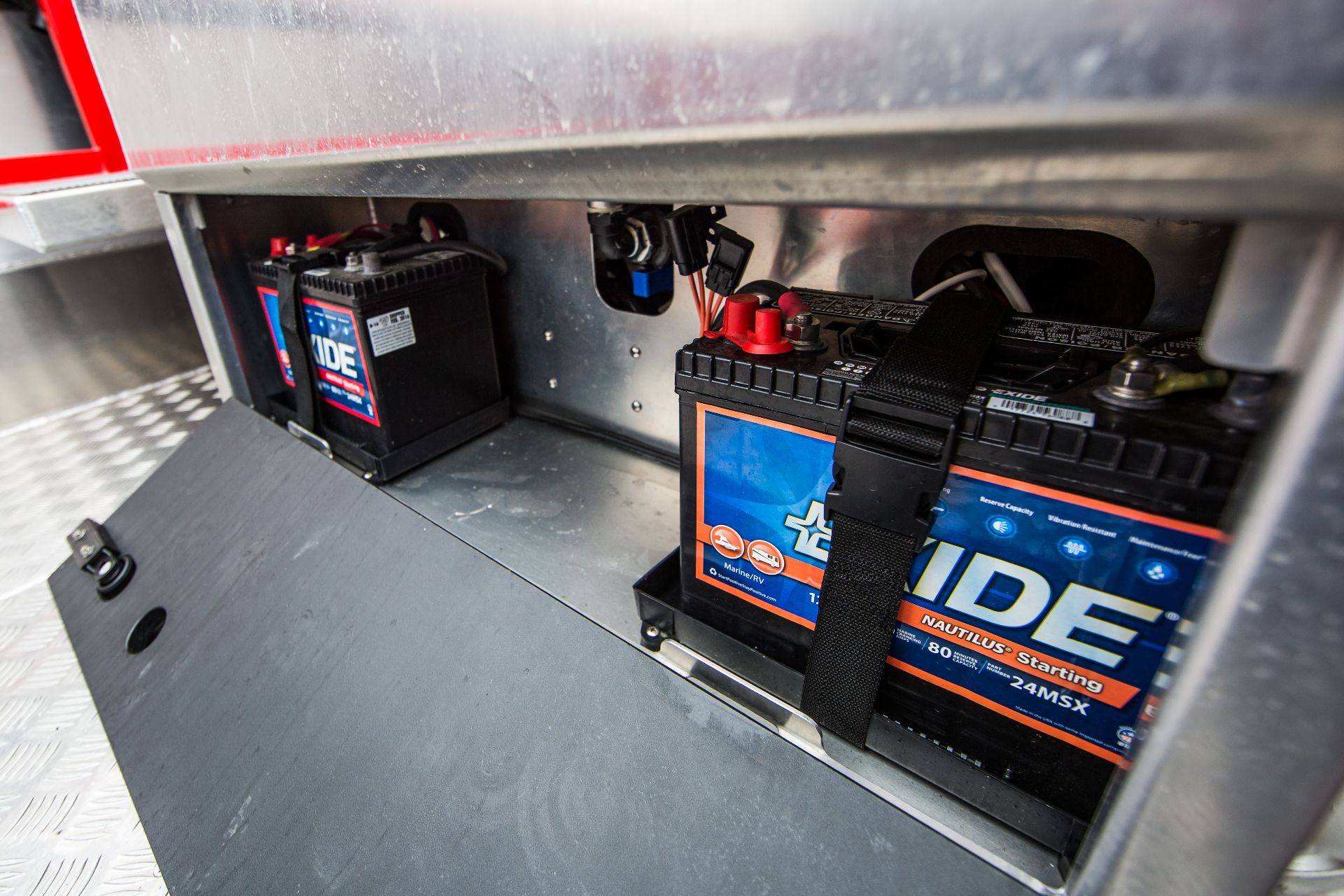

Bluesea Battery Dual Switch

Twin Bilge Pump Johnson Ultima 1250GPH

Trim Tab Mounts

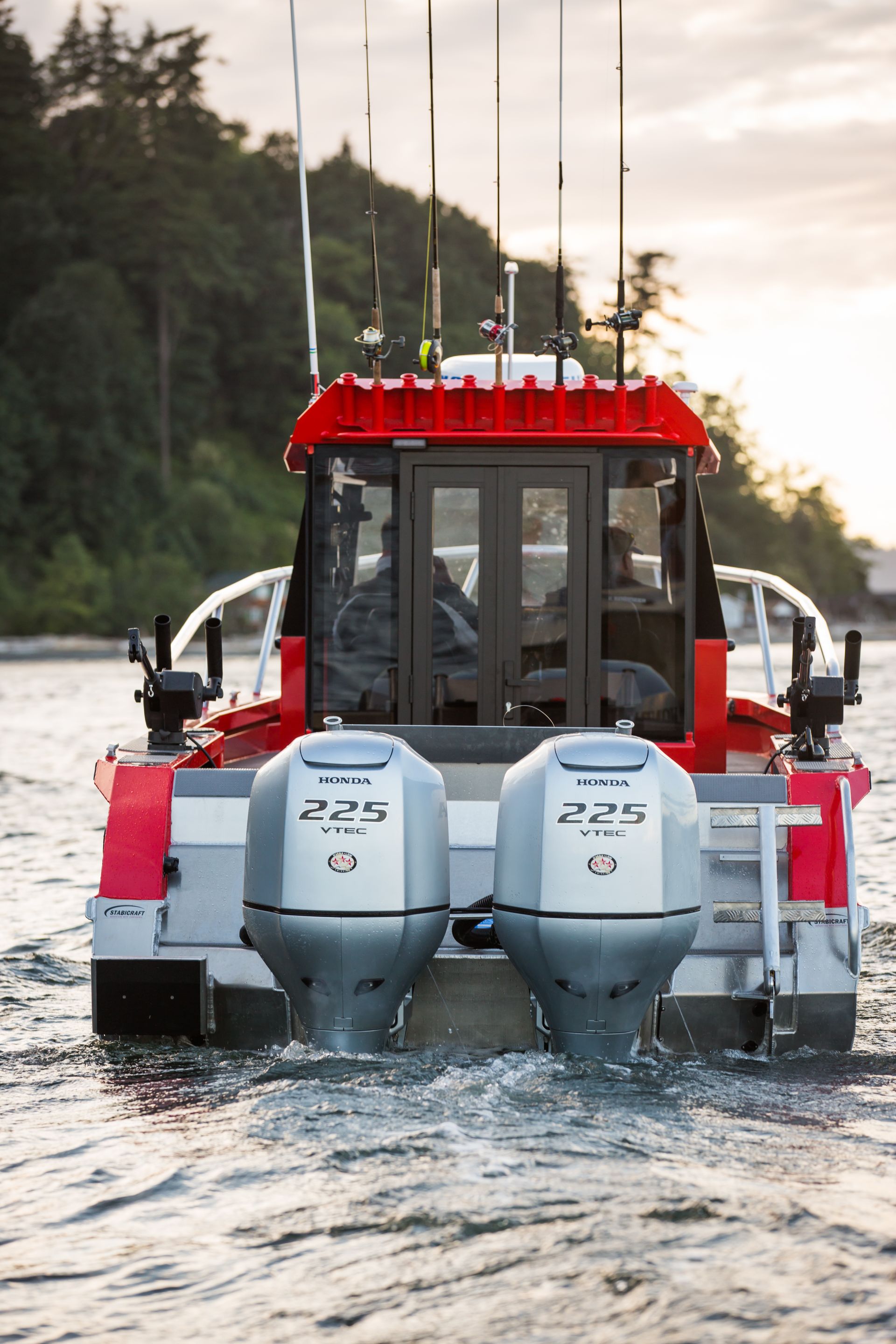

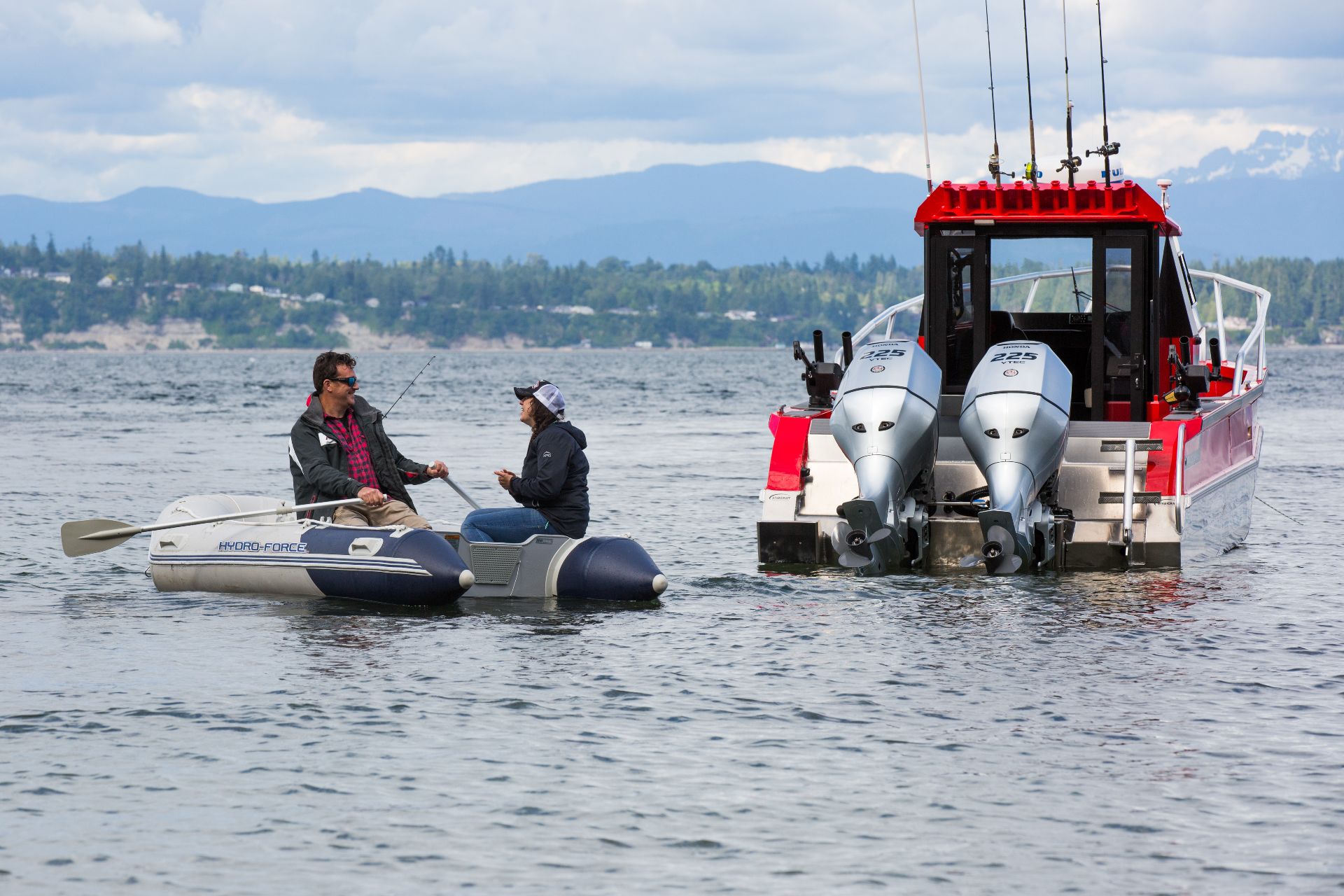

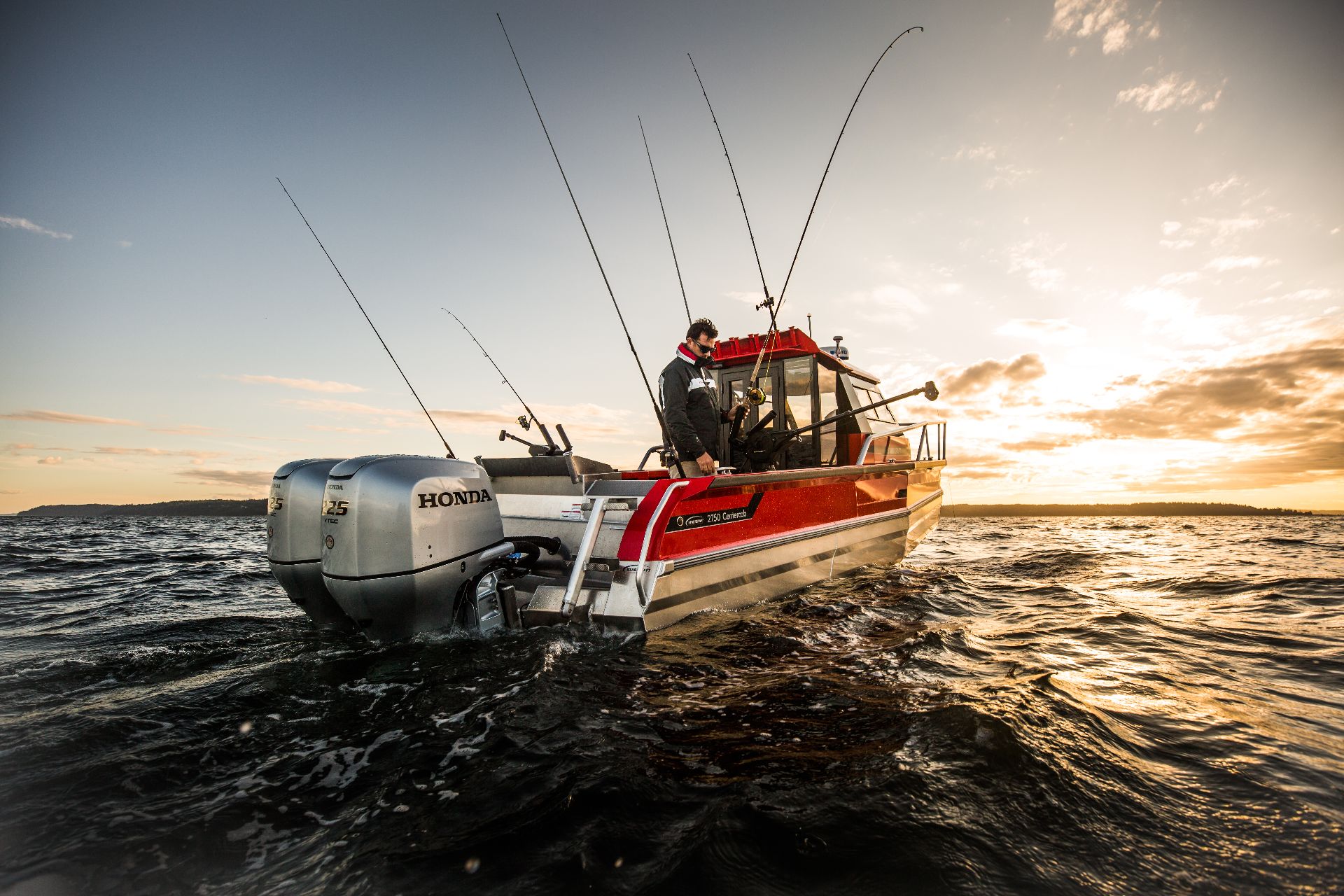

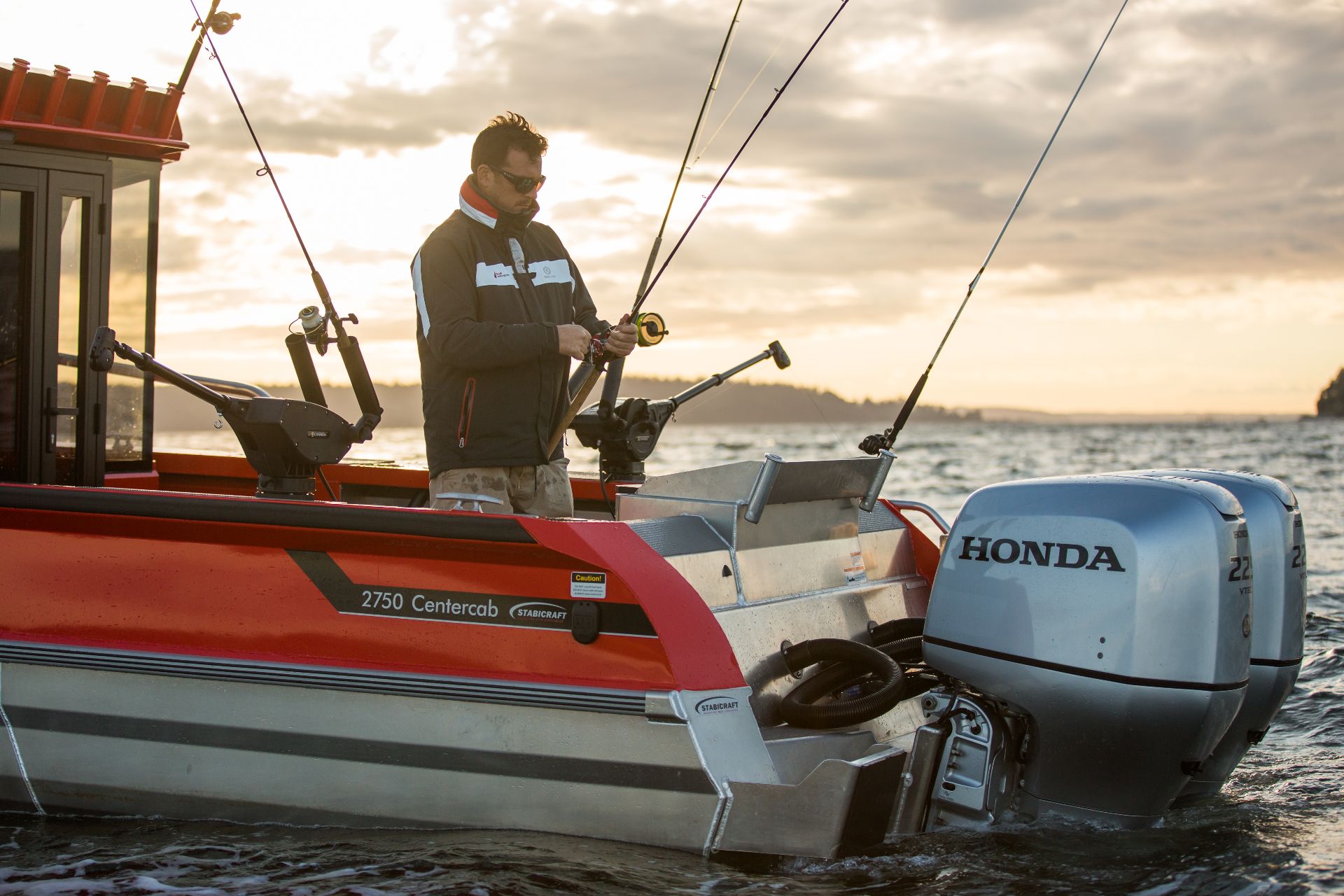

Game Chaser 25” Twin Engine Mount, MAX 500 HP

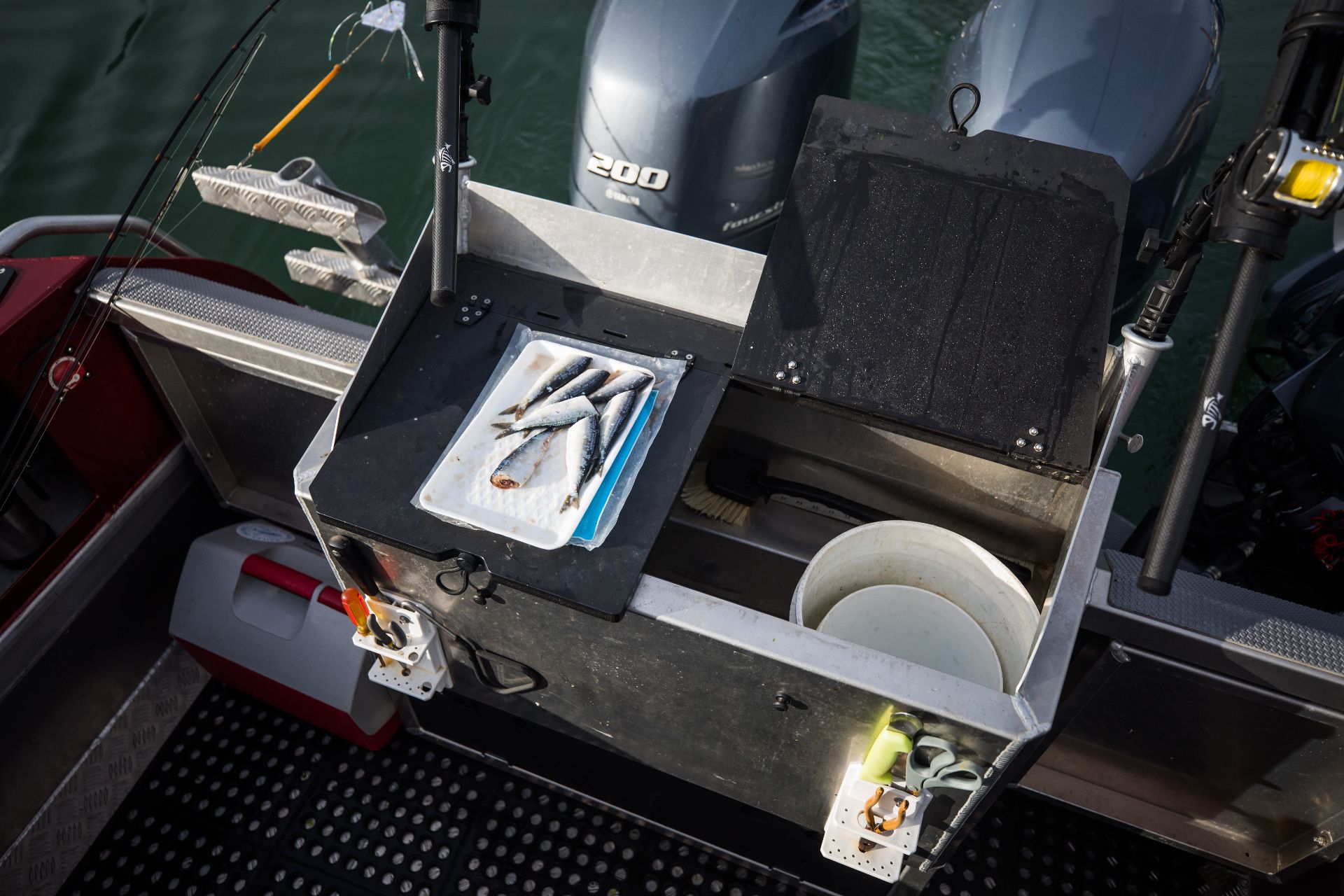

Game Transom Box with 4 Rodholders & LBT

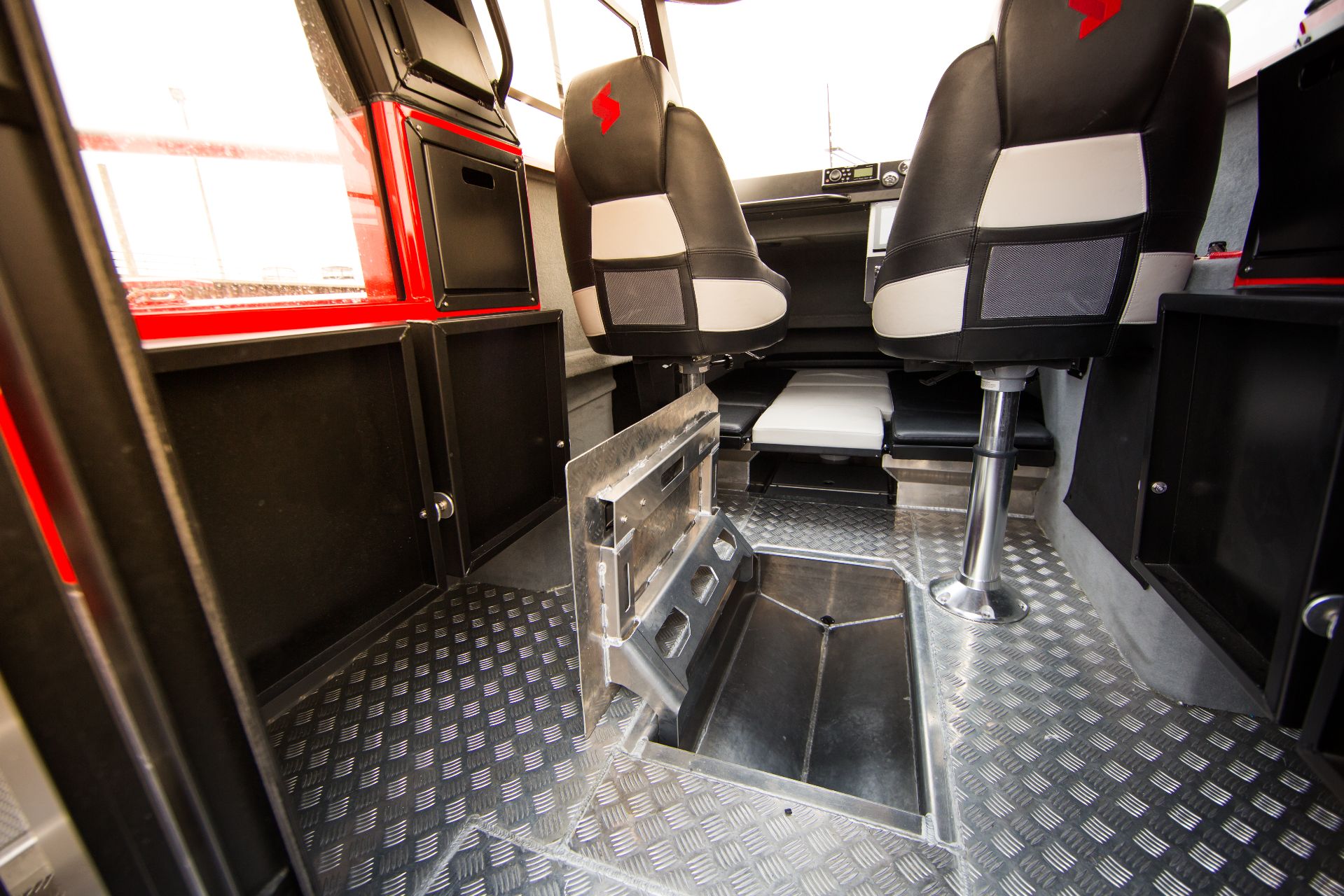

4mm Tread Plate Floor (with EPA fuel tank lid)

Underfloor 500L EPA Fuel Tank

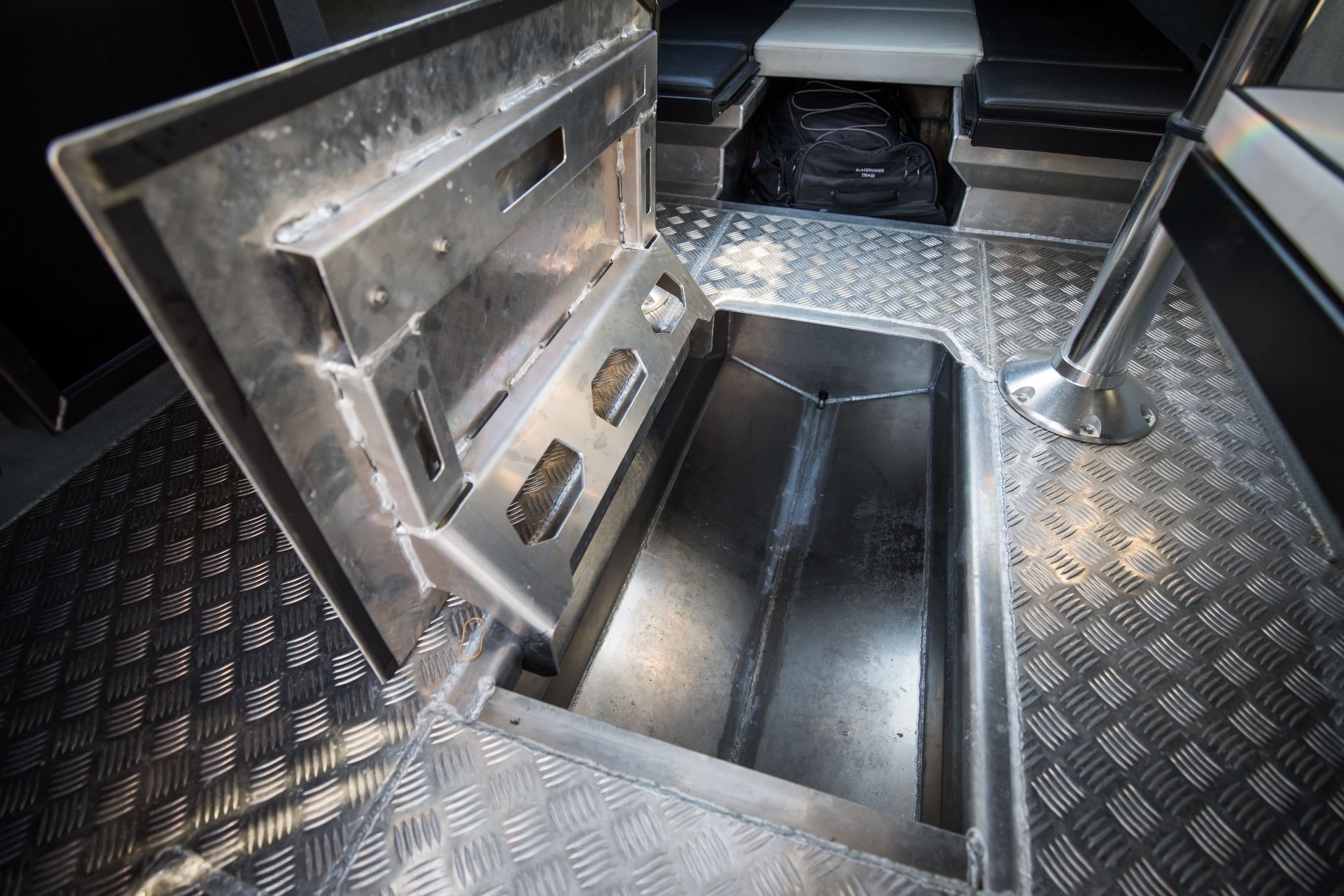

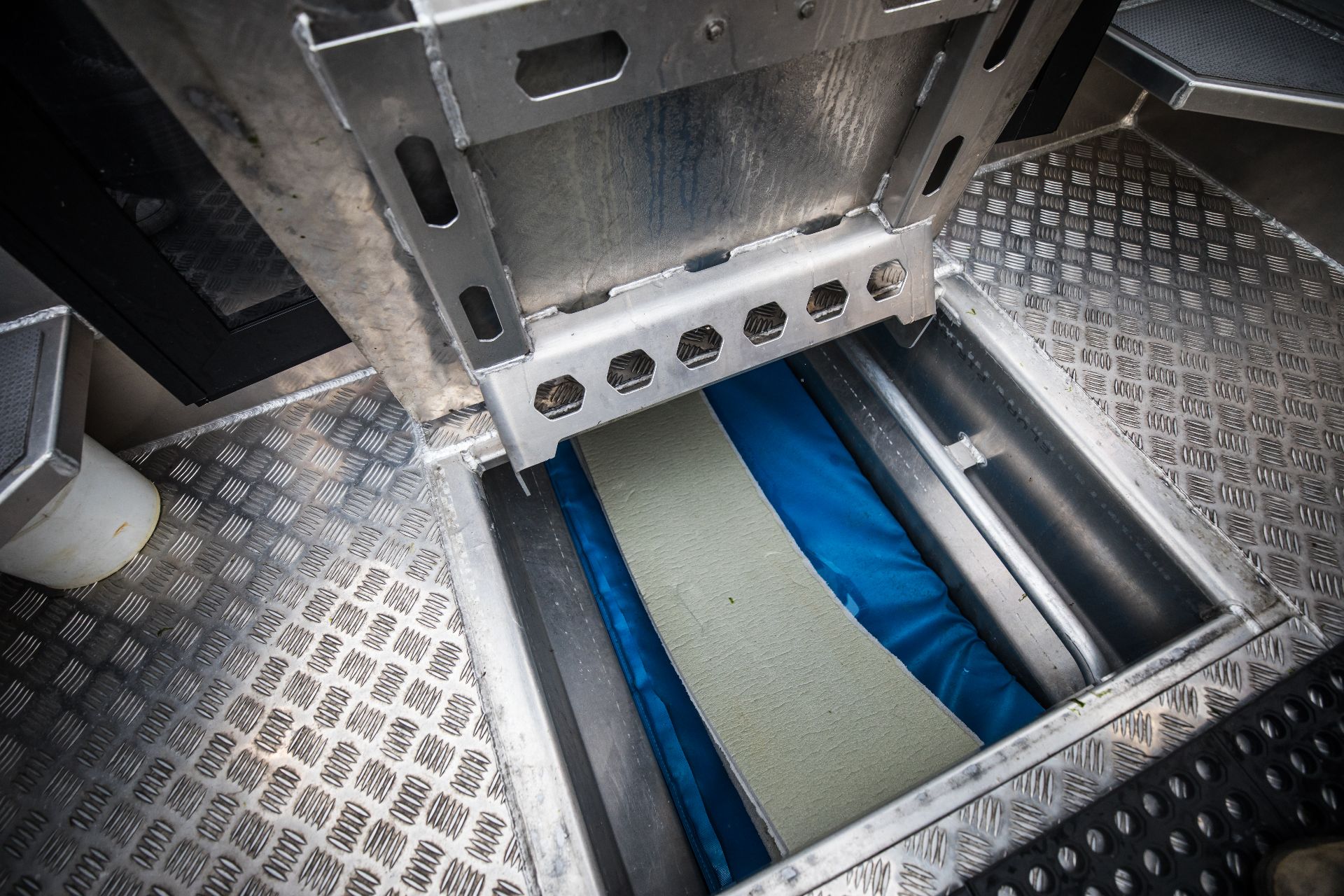

Cockpit Wet Underfloor Storage with Thru Hull Drainage Bung

Provision for Airmar Through Hull Transducers with

Gimble Adjustment Port & Stb

Towing Eye

Hull Planing Strakes

SARCA Aluminium Fairlead Fitted

Stabi Cleats x 6

Wash Down Pump Kit with Hose & Gun

Two Electric Reel Clip Posts In Cockpit Coamings

Walk-around external drainage

Walkaround Lights

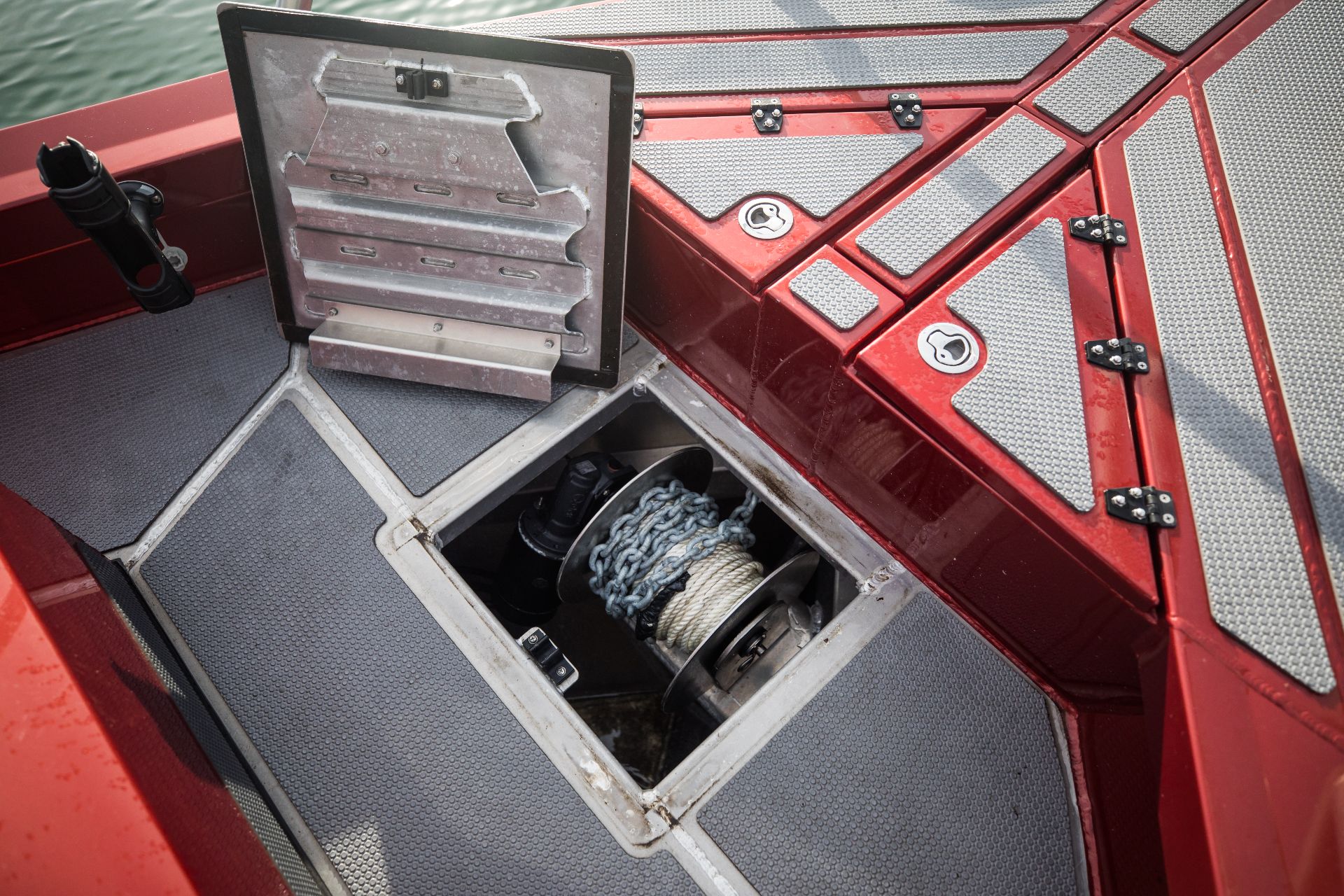

Maxwell TASMAN 8 Drum Winch with Rope, Chain & SS Swivel

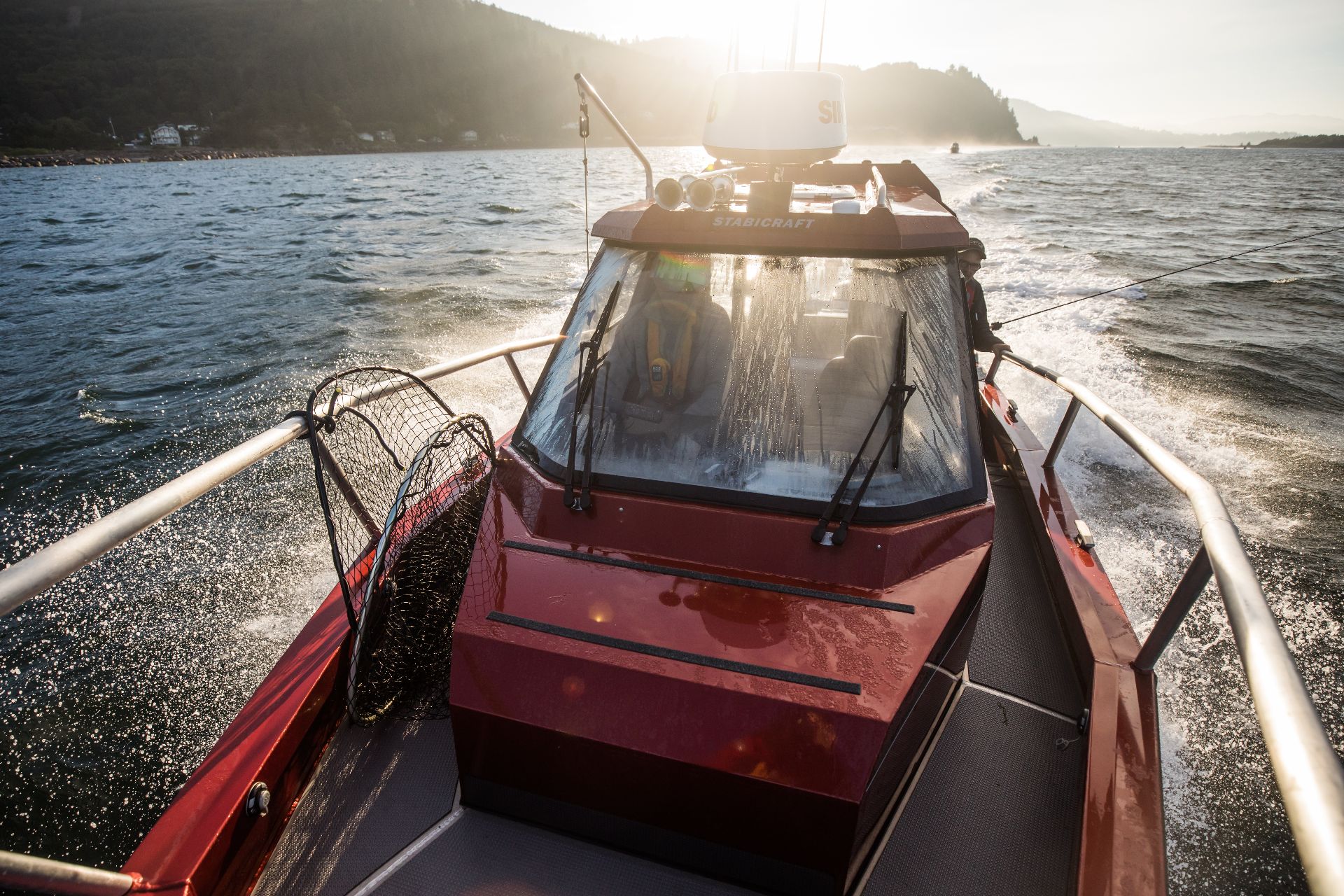

Bow Rails

PWC Spica Pearl Vertical (3) Rodholder Travel Storage x 2

6 SS Rodholders + 6 Multiholders Fitted

Wingstyle Coamings

OCTI for Coamings Fitted (with Rod & Multiholders)

PWC Dash & Shelf in Spica Pearl

Gloss Paint - Belting up

Full Graphics Package Installed

Coamings Fendering + Extrusion Fendering Installed

PWC Cabin in Spica Pearl

PWC Interior Components in Spica Pearl

Options

2750 Centre Cab Stabicraft

Cabin / Console

Rear Wall with Bi Fold Door

Maxwell Roof Hatch

Electric Toilet with Holding Tank, Roll Holder and Privacy Curtain

Porta Potti with Roll Holder and Privacy Curtain

Planar Diesel Heater 4kw

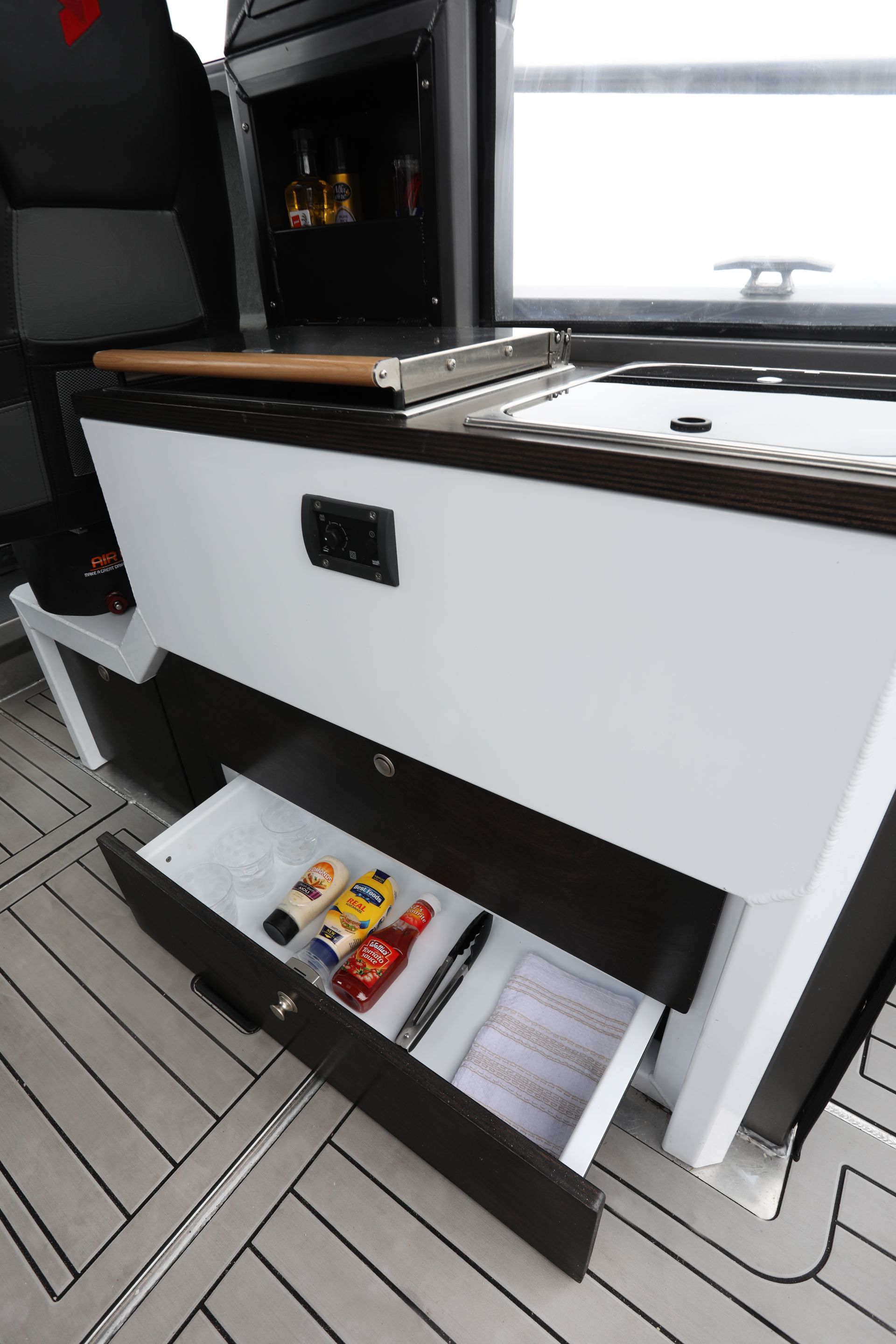

Cabin Galley Unit with Wallas Diesel Stove/Heater & Sink with Water Tank

Radar Tower (high)





Seating

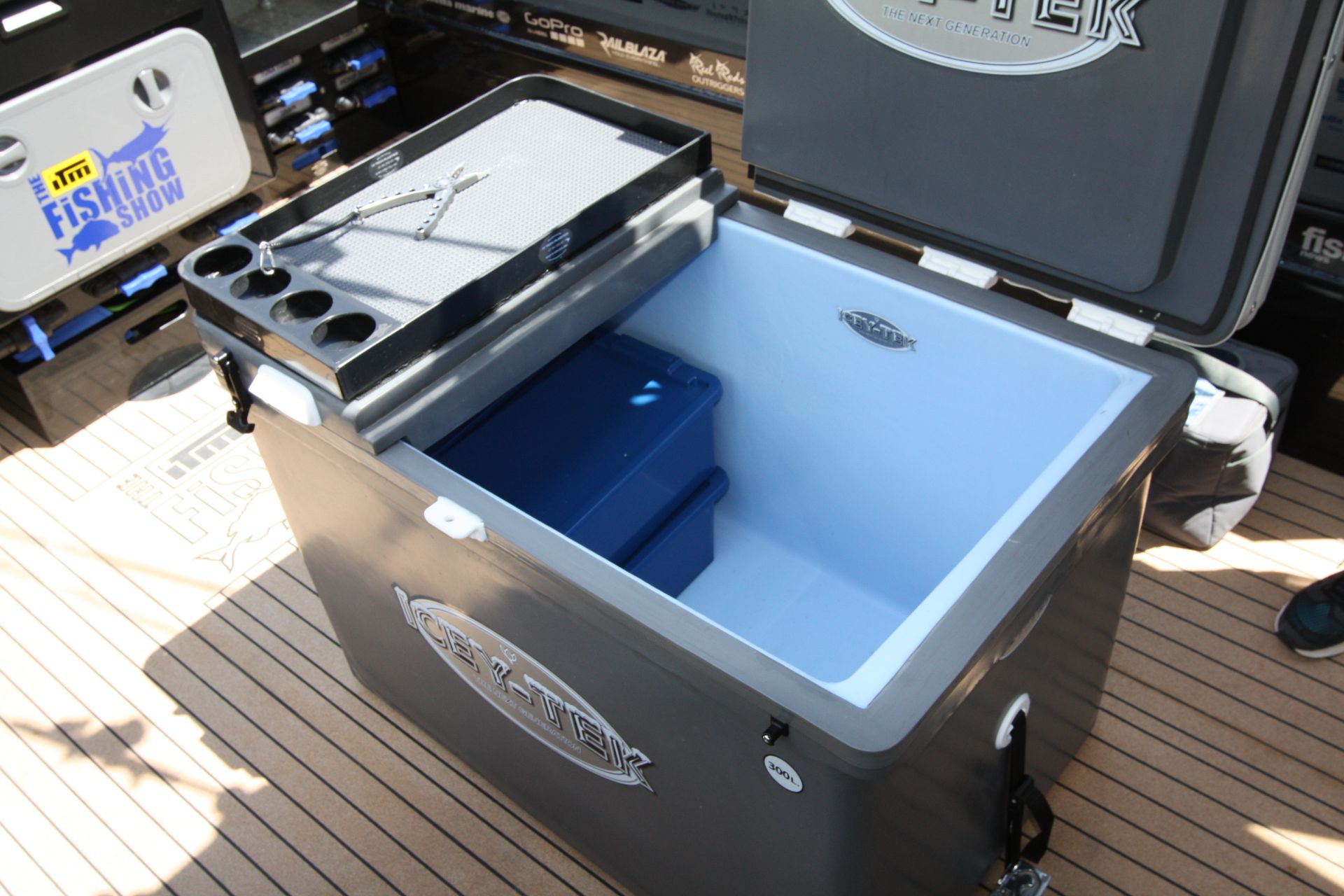

Split Lid 90L Icey Tek with 2 Squabs (Remove Cabin Troop Seats)

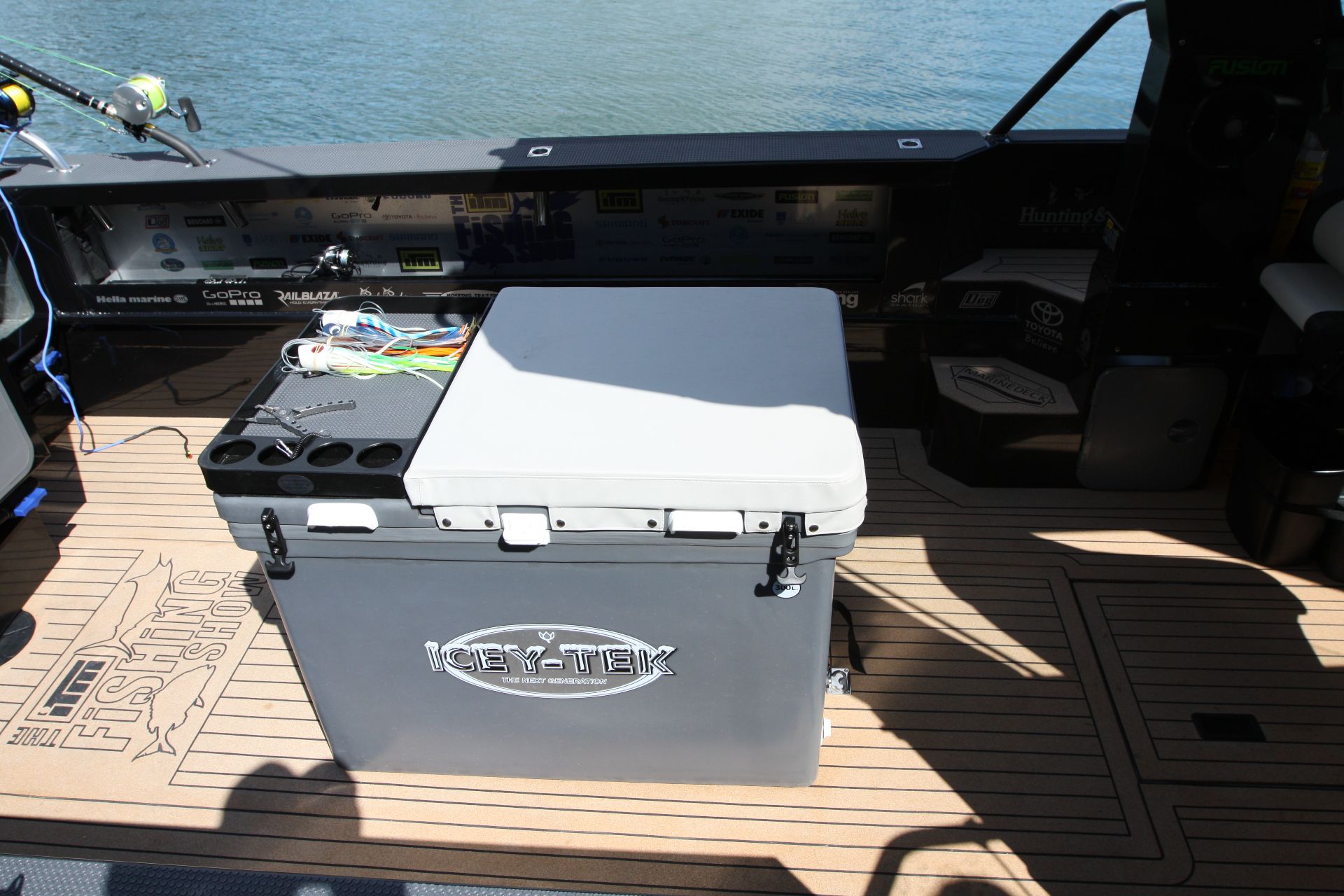

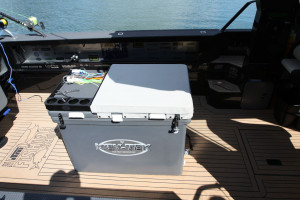

300L Icey Tek with Squab





Transom

Lenco Trim Tabs 4x12 (Auto Retract & LED Indicators)

Starboard Rear 3 Step Boarding Ladder with Alloy Boarding Rail

Portside 20” Auxiliary Bracket Weld On

Port Rear 2 Step Boarding Ladder with Alloy Boarding Rail

Port Rear 3 Step Boarding Ladder with Alloy Boarding Rail

Starboard 20” Auxiliary Bracket Weld On

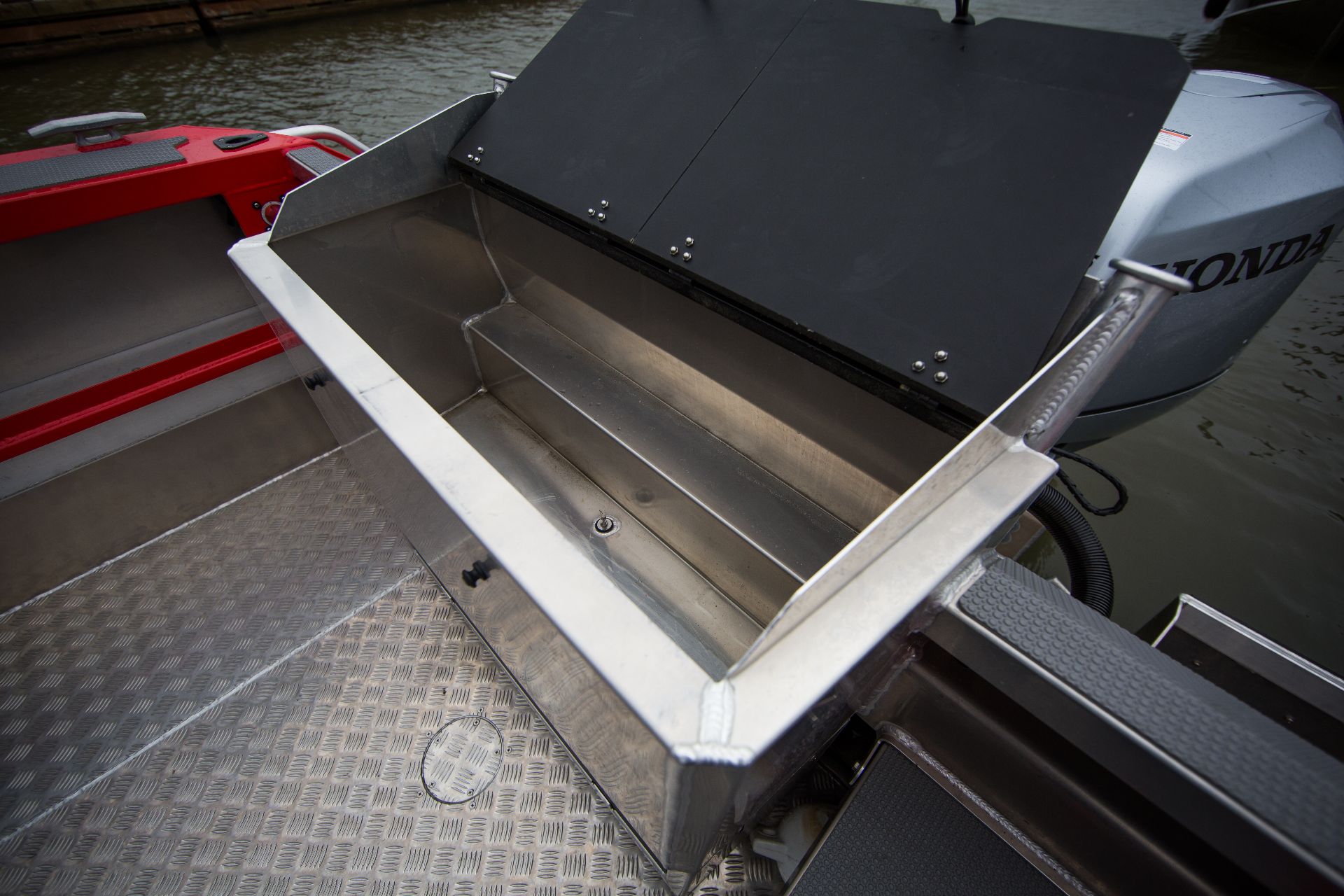

Fish Box Transom





Hull & Floor

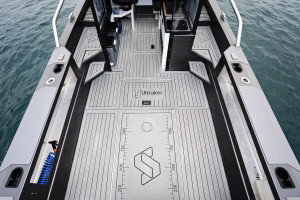

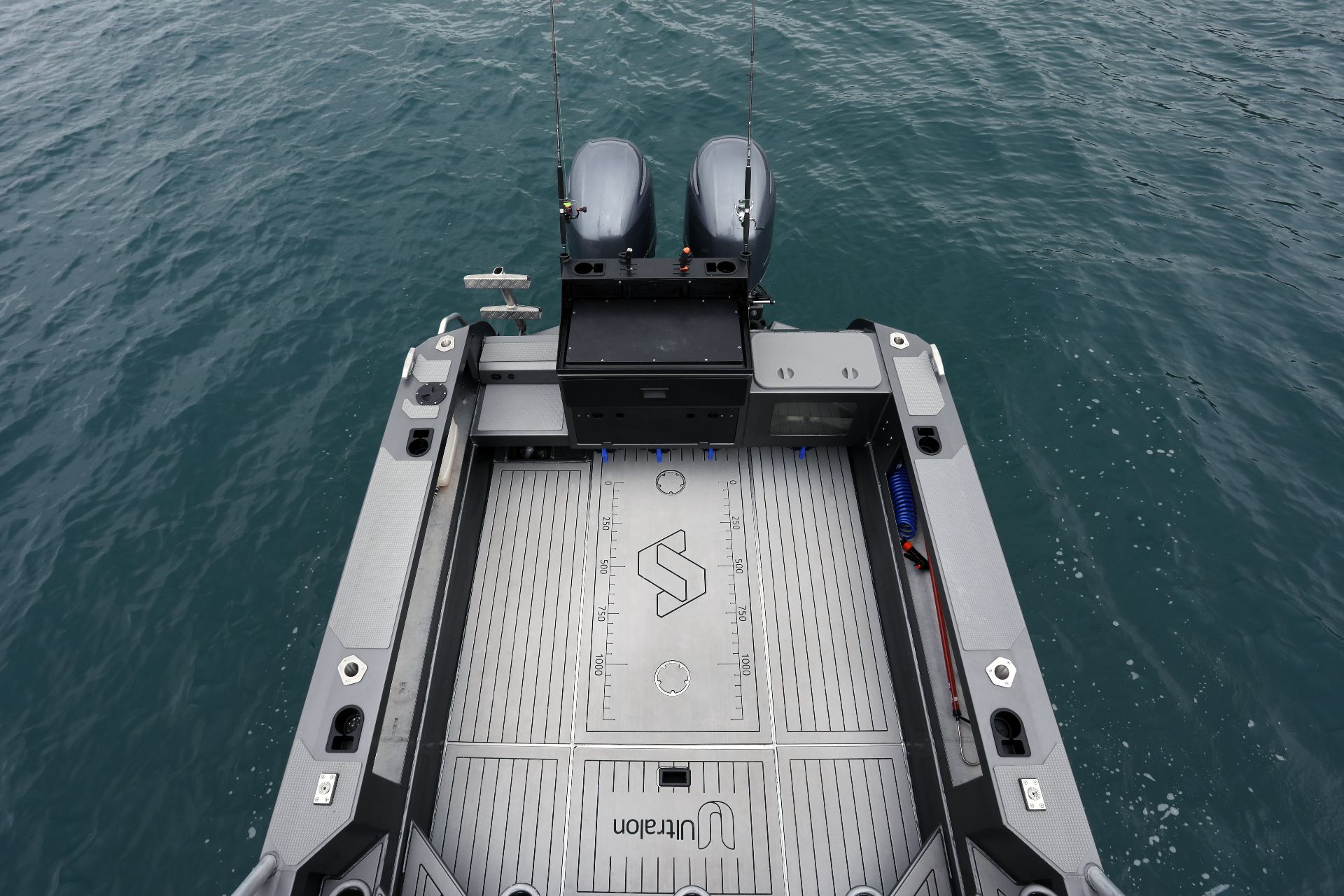

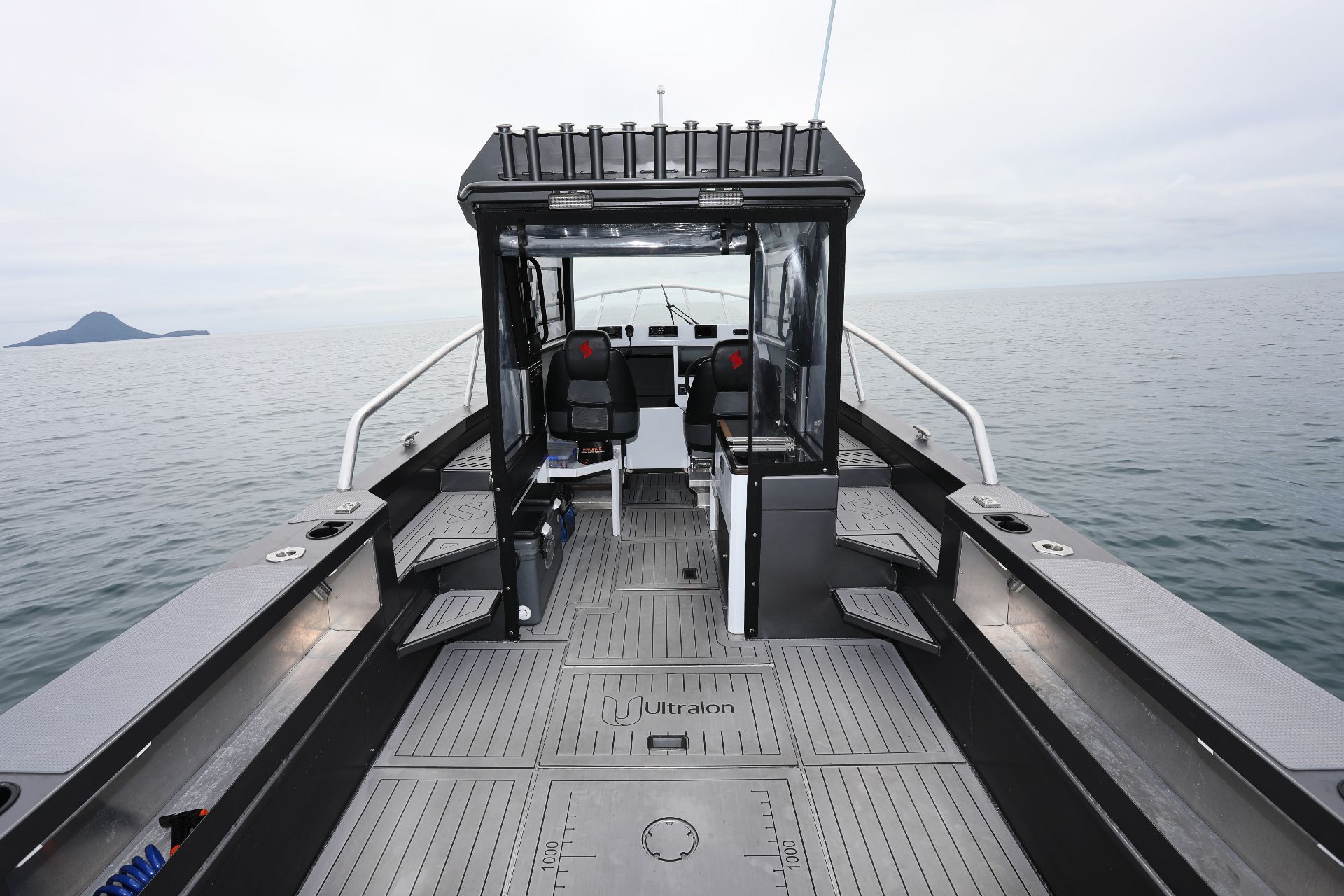

U-Dek Flooring & Coamings with Stabicraft Logo & Measure

Injected Foam Filled Pontoons (Sound reduction)

3mm Keel Wear Strip

Weld on Boat Catch Block Above Towing Eye





Coamings

Sarca #4 Anchor

Electric Trolling Motor Mount Portside (Suits Ulterra 72”)

External Coaming Handrails





Paint

Stage 1 - Belting Up Metallic

Stage 2 - Belting Up & External Pontoons Gloss

Stage 2 - Belting Up & External Pontoons Metallic

Stage 3 - Full, Inc Transom & Int Pontoons Gloss

Stage 3 - Full, Inc Transom & Int Pontoons Metallic

Bow Rails Painted - Black or Grey

Handrail Paint Package - Black or Grey

Dash & Shelf Painted Gloss

Dash & Shelf Painted Metallic
