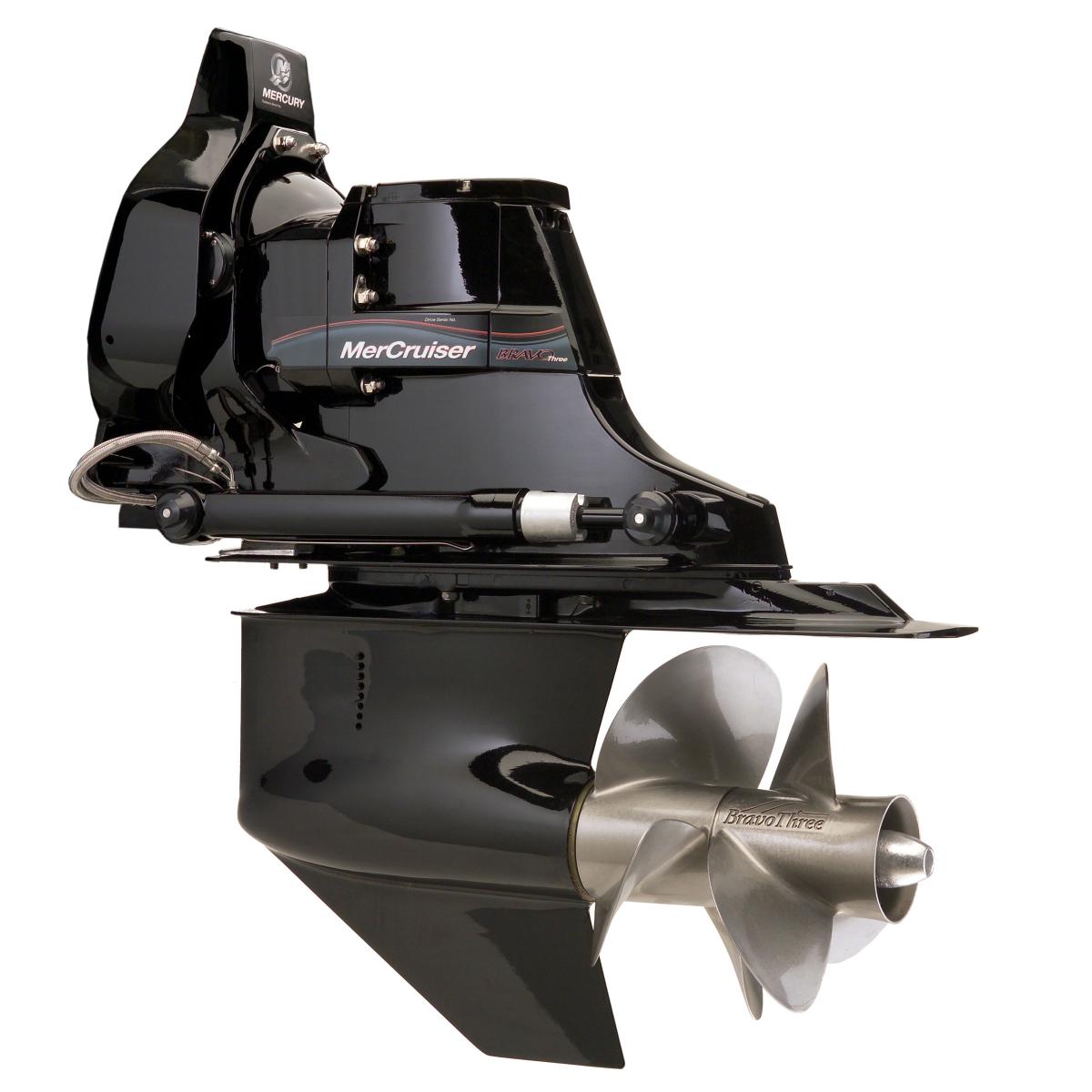

Mercruiser Bravo Three Sterndrive - Efficient, easy to manoeuvre and an exciting performer, Bravo Three drives represent the complete package. * Single or twin installation for engines up to 525hp * Counter-rotating propellers provide agile handling. * Ultra-pure aluminium anodes and Mercury-exclusive MerCathode help prevent galvanic corrosion. *Excellent reverse handling and smooth, best-in-class shifting.
Maximum Power Capacity | 400 HP (295 kW) |
Lower Unit Design | Extended Length Strut |
Maximum Propeller Diameter | 2 X 16" |
Water Inlet Location | Strut |
Clutch Type | High-Strength Smooth-Shift Cone Clutch with F-N-R |
Available Gear Ratios | 1.81, 2.00, 2.20, 2.43:1 |
Counter-Rotation | Twin Prop |
Upper Unit Gear Set | Precision Shimmed Assembly with Near-Net Forged Helical Gears |
Lower Unit Gear Set | Precision Shimmed Assembly Forged Bevel Gears with Twin Counter Rotating Propshafts for Bravo Three |
Propshaft Material | Heat-Treated Stainless Steel |
Standard Exhaust Outlet | Through Propeller |
Required Propeller Hub | None for Bravo Three |
Recommended Lubricant | Mercury High-Performance Gear Lube |
Monitoring System | Engine-Mounted Lube Monitor w/Audio Warning or Engine Guardian® |
Corrosion Warranty | 3-Year, Limited |
Housing Construction | Corrosion Resistant XK 360 Aluminum Low-Copper Alloy |
Corrosion Protection | Tri-Paint, Anodes & MerCathode® Electronic Corrosion Prevention |
Anode Type | Ultra-Pure Aluminum Anodes or Magnesium Anode Kit |
Speedometer Pick-up | Integrated Into Lower Housing, Digital Output Optional |
Steering System | Single Cylinder Power Steering with Anti-Feedback |
Steering Range | 56° Range Stop to Stop, Digital Output Optional |
U-Joint Type | Permalube® Virtually Maintenance-Free |
Power Trim System | Twin-Cylinder Hydraulic Featuring Power Trim XD® Kick-up Return |
Typical Trim Range | -2° to 14° |
Trim Limit Switch | Adjustable Limit Analog or Digital - Engine Dependant |
Trailer Limit | 51° |
Trim Hinge Pin Design | Permanently Lubricated - No Maintenance Required |
Hydraulic Trim Lines | Stainless Steel Braided Armor |
Drive Coupler | Greaseable From Inside Boat |
Drive Weight | 148 lbs. (67 kg) |
