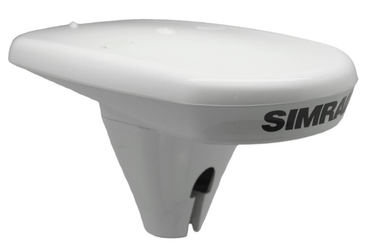

Simrad HS60 is a low cost GPS compass. Key Features - Provides heading, pitch, roll, heave and position - Excellent in-band and out of band interference rejection - 2° (RMS) heading accuracy in an amazingly small form factor - Integrated gyro and tilt sensors deliver fast start- up times and provide heading updates during temporary loss of GPS and satellites - Differential (SBAS) position accuracy of 1 m RMS - Accurate heading for up to 3 minutes during GPS outages - Offered as NMEA 2000 version* *NMEA 2000 cable is not included Key Selling Features -Low cost GPS Compass -The most price competitive Simrad GPS Compass solution to date -HS60 GPS Compass which will replace both Fluxgate compass and GPS antenna -Supplies as a standalone system with mounting accessories -Easy to install with NMEA 2000 cable (cable is not supplied) -HS60 can supply True Heading messages on NMEA 2000 BUS -Can be connected to GN70/MX610/MX612 GNSS Navigation systems via NMEA 2000 BUS -Provides heading, pitch, roll, heave and position -Excellent in-band and out-of-band interference rejection -Accurate heading for up to 3 minutes during GPS outages

Features :

  • Simplicity of a compass and GPS receiver in one
  • Tracks heading, rate of turn, position, heave, roll, and pitch
  • Accurate heading based on GPS data, free from magnetic interference
  • Supports satellite-based augmentation systems (SBAS) for enhanced positional accuracy
  • Compact flush-mount or pole-mounted design
  • Easy installation with NMEA 2000® connectivity
