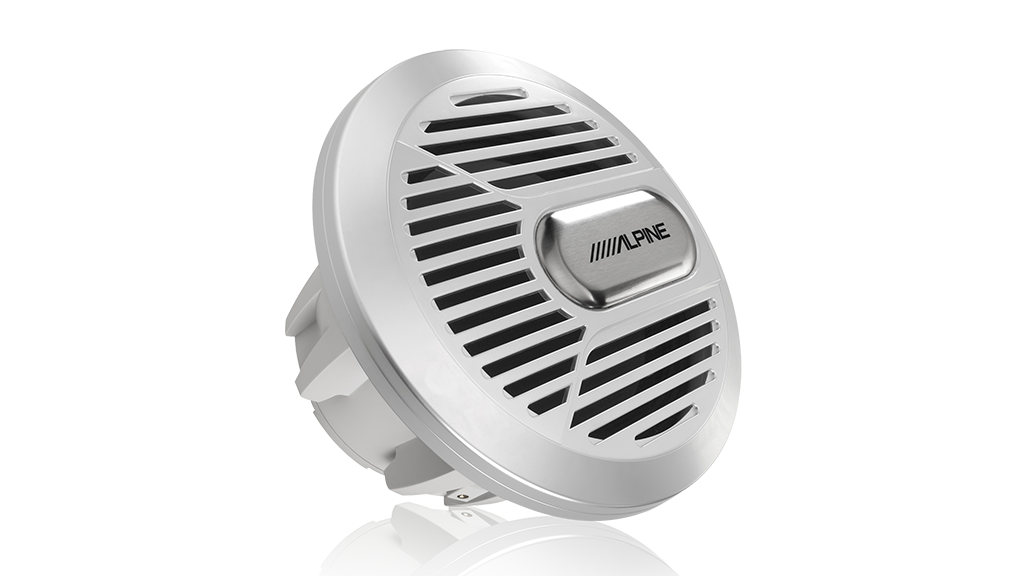

Alpine Marine SWR-M100W 10" White Subwoofer

Used for Display Purposes only in our wangara Showroom. In New condition

The SWR-M100W uses a high-excursion woofer design based on Alpine’s high performance Type-R car subwoofers that deliver massive bass from modest input power.

This fully marinised 10″ subwoofer can handle a brutal 300W RMS and 900W peak power for bass that will rock you even with wind noise at high speeds.

Perfectly power matched to PDX marine amplifiers, you can create a marine sound system with single or multiple subwoofer configurations.

ATSM B117 Salt/Fog
Climate emulation test that consists of exposure to salt water, humidity and high temperature

ATSM G154/D4329 UV
High intensity accelerated weathering test that involves 500 hours of cyclic exposure to high temperature, water mist, humidity and intense UV.

IPx5 Water Resistant
Ingress protection rating test that consists of high pressure water spray and moisture



Technology

Using some of the same technologies as the Type-R subwoofers, such as HAMR Surround for extremely long cone excursion while maintaining maximum control, these speakers deliver deep, muscular bass that gives your sound a powerful punch.

Features

  • CEA-2031 Speaker rating: 300W Maximum RMS, 900W Peak Power
  • Handling Nominal Impendance 4
  • Frequency Response: 35Hz – 700Hz
  • Infinite baffle design
  • Gold-plated 2-way spade/insert terminals
  • 300W RMS/ 900W Peak
  • 4Ohm Impedance
  • High Excursion for deep, high output bass
  • Infinite Baffle Design for widest application
  • Custom high-strength polypropylene frame
  • High Amplitude Multi-Roll (HAMR) Surround (Pat. Pend)
  • CRC Motor Structure (Patented)
  • Thermal Management System
  • Integrated Insert & Spade Terminals
  • Hidden Screw Mounting & Grille Design
  • Waterproof Rubber Mounting Gasket Included

Specifications

Design, Layout, Material

  • Gasket Design: Rubber Mounting Gasket
  • Tinsel Leads Design: 16ga. Stranded Leads, Insulated
  • Terminals Design: 2-Way, Insert & Quick-Connect Terminals Layout: One Side

Frame

  • Design: Custom High Strength 5-Leg
  • Material: Injection Molded Polypropylene

Motor Structure

  • Configuration: Airflow Management System
  • Pole Geometry: Compound Radius Curve

Voice Coil

  • Design: 4-Layer Single Voice Coil
  • Material: High Temp. Copper Wire on TIL Former

Spider

  • Design: Progressive
  • Material: Nomex®

Surround

  • Design: High Amplitude Multi-Roll
  • Material: Injection Molded Sanoprene®

Diaphragm

  • Design: 2-Piece Structural Parabolic
  • Material: Molded Polypropylene

Dimensions

  • Added Volume: 0.055 cu. ft. (Reverse Mount, Magnet Out)
  • Displacement: 0.083ft cu. ft. (Front Mount)
  • Mounting Diameter: 229 mm (9-1/32^^)
  • Mounting Depth: 144.72 mm (5-11/16^^)

Power Handling

  • Peak Power Handling: 900 Watts
  • RMS Power Handling: 300 Watts
  • CEA-2006 Power Rating: 300 Watts

SKU: SWR-M100WOWNERS MANUAL: SWR-M100W
